Version without A.B.S.

Make

Fiat

Model

Scudo Factory Service Manual

Year

1996–2006

Section

Control units (99 update) › Version without A.B.S.

55 Electrical equipmentVersion without A.B.S.

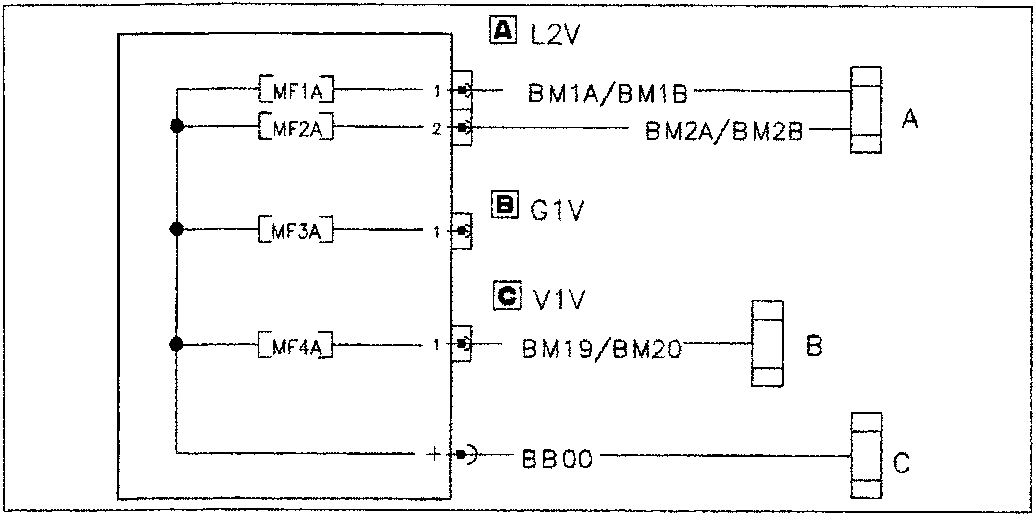

A: 1997 JTD front cable loom.

B: A.B.S. cable loom

C: +30 battery.

Version without A.B.S.

The BMF2 junction unit, unlike the version with A.B.S., only protects the injection system for the Scudo 1997 JTD version.

The control unit, still located in the front on the left, consist of 3 different connectors which contain 2 power fuses which are used and 2 spare ones.

Fuse	Amperage	Supply	Protection	Connector	Pin
MF1A	20A	+30 battery	1997 JTD engine injection system	A (blue 2-way)	1
MF2A	30A	+30 battery	1997 JTD engine injection system	A (blue 2-way)	2
MF3A	-	+30 battery	Spare fuse	C (yellow 1-way)	1
MF4A	-	+30 battery	Spare fuse	B (green 1-way)	1

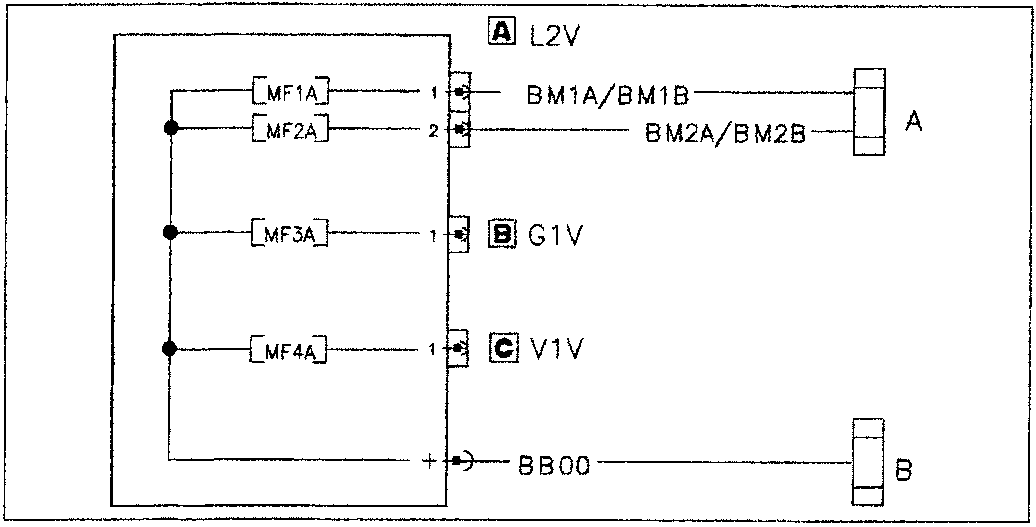

BMF2 wiring diagram

A: 1997 JTD front cable loom

B: +30 battery

06 Electrical
