JUNCTION UNIT IN BFOO DASHBOARD
Positioning bridge 8 (Shunt) in junction unit BF00

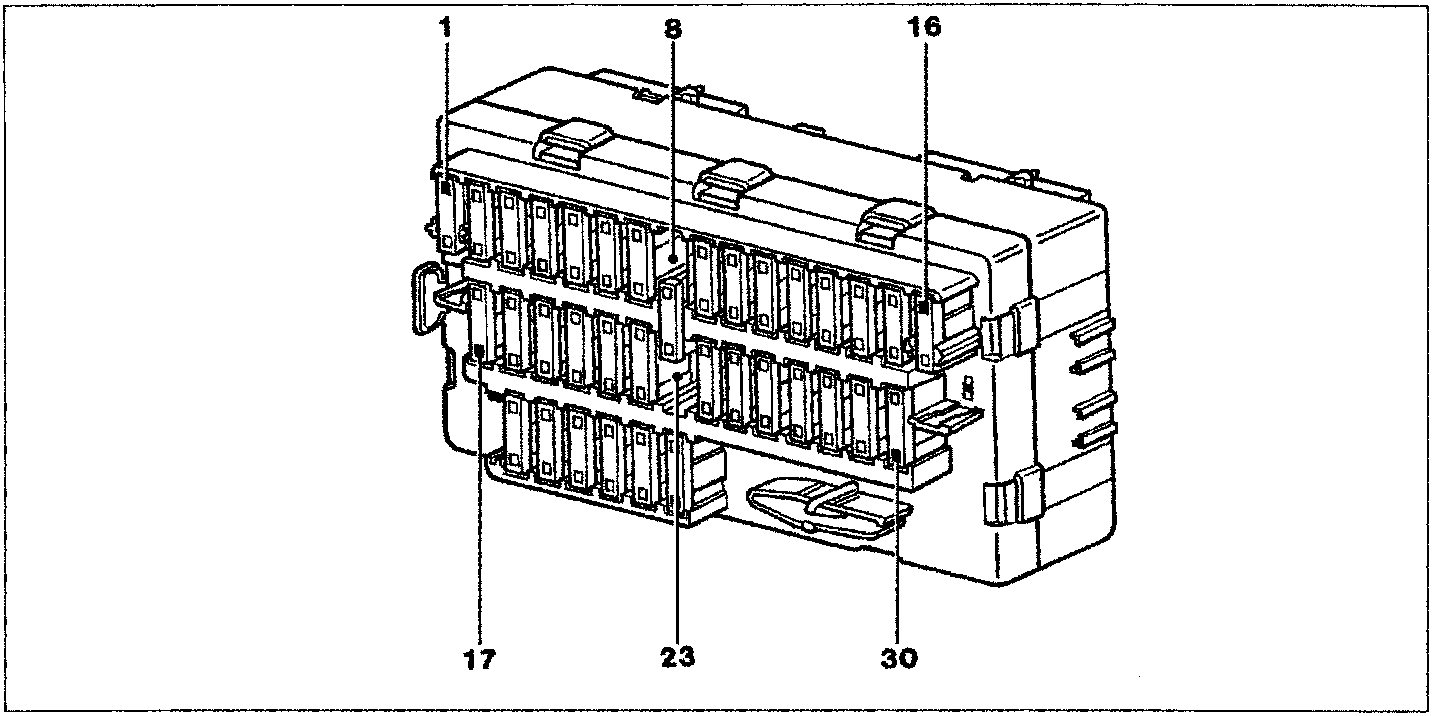

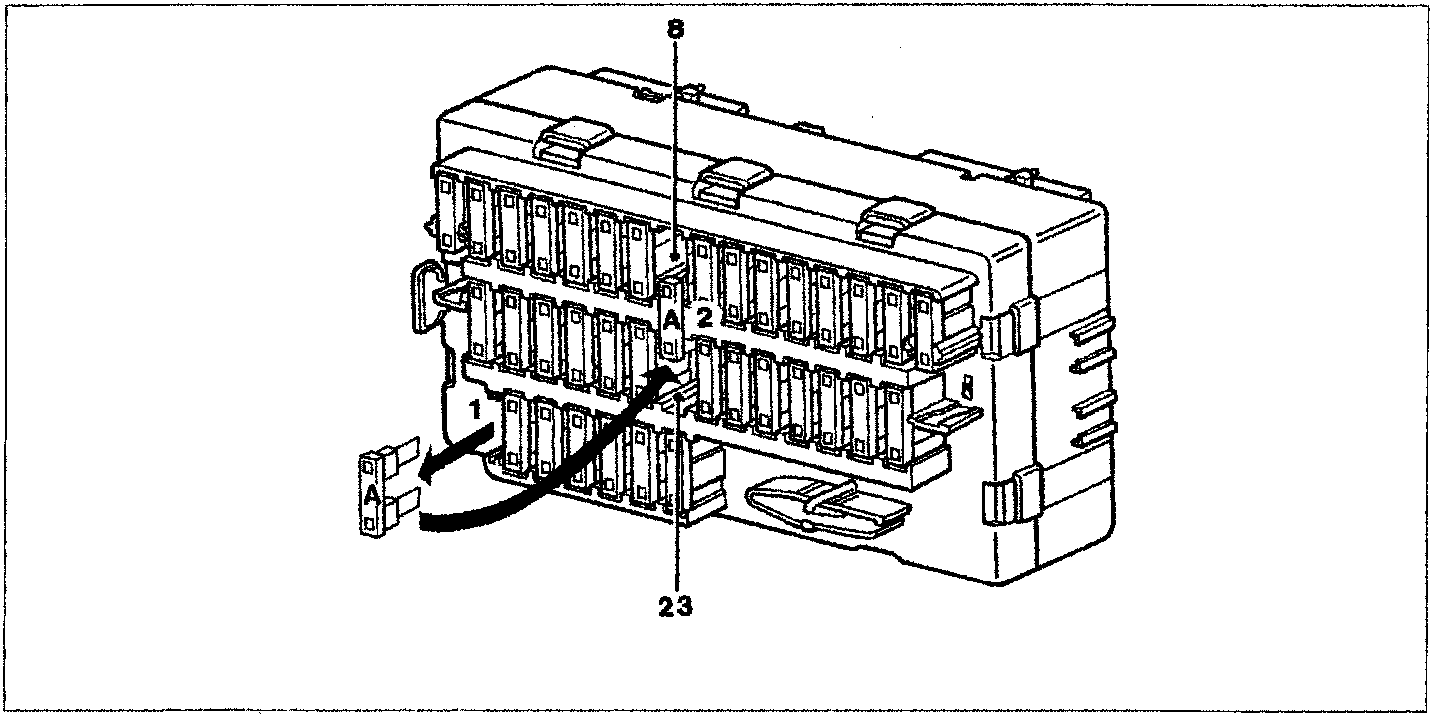

Before delivery bridge (Shunt) A must be repositioned as illustrated in the diagram from position 1 (3rd row at the bottom of the control unit) to position 2, thereby restoring the connection between fuse carrier housings 8 and 23.
The distance between the terminals of bridge (Shunt) 8 is greater than that for normal fuses therefore it cannot be used in the other fuse carrier housings.
