55 Electrical equipmentInstrument panel light dimmer

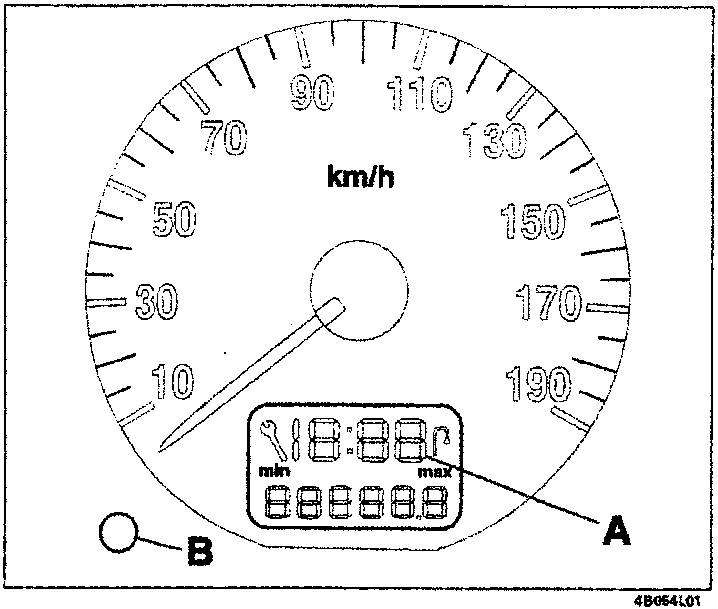

- Opening the driver’s door activates the display of the time, this display is deactivated one minute after the door is closed.
- When the driver’s door remains open, the display of the time remains activated for ten minutes.
INSTRUMENT PANEL LIGHT DIMMER
The light dimmer works when the ignition key is in positin M (+15) and the side lights are on.

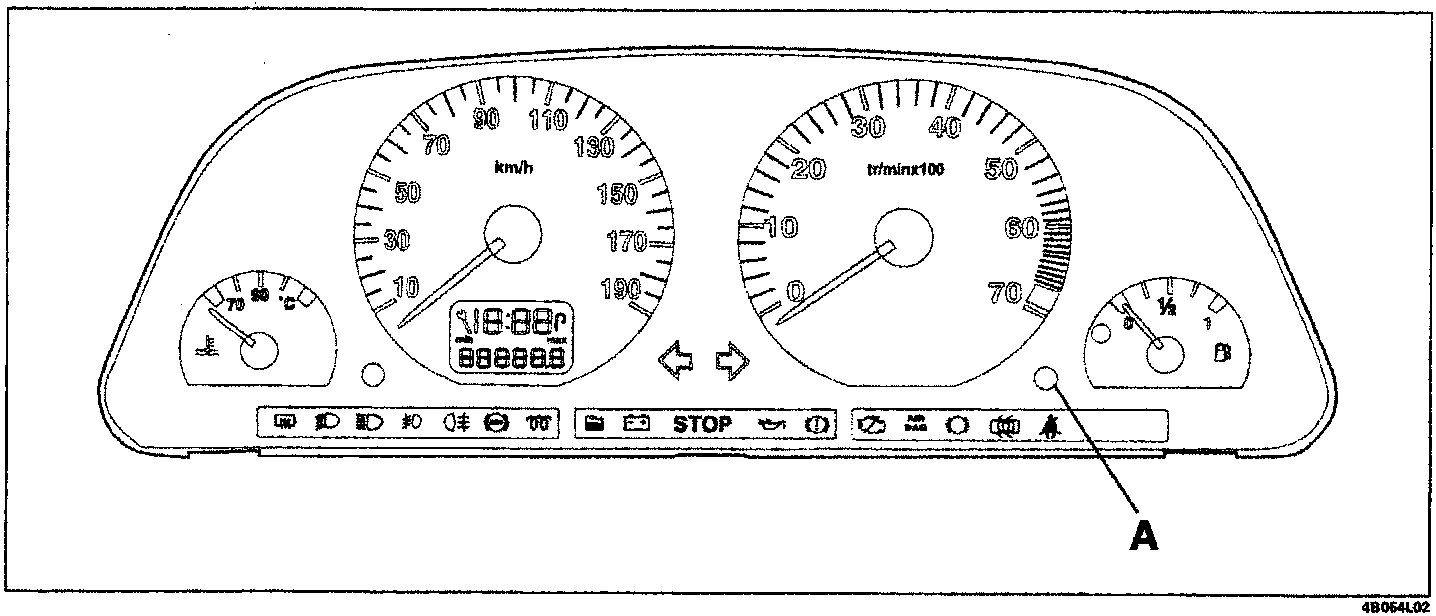

By pressing the button (A), the panel light alters gradually.
Keeping the button pressed, the light alters quickly.
