Milometer/trip meter

MILOMETER/TRIP METER

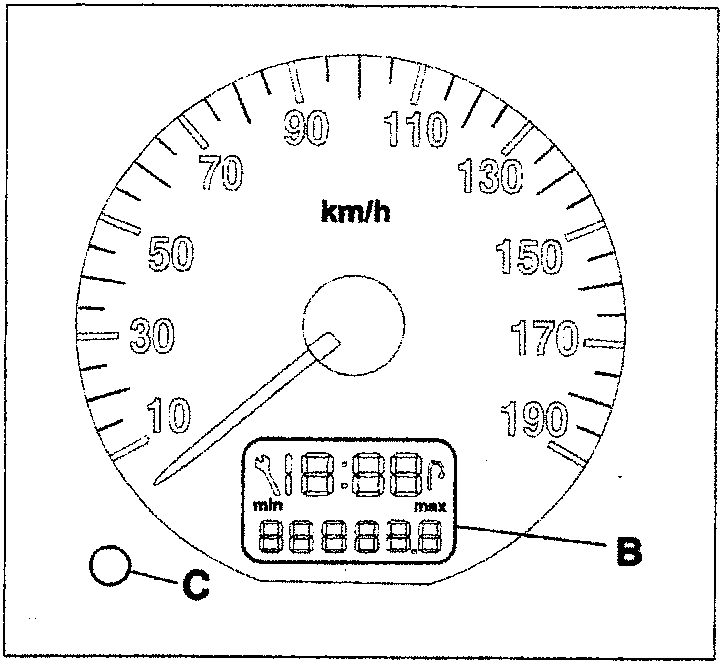

The counting of the total/partial mileage is incorporated inside the maintenance indicator:

The display (B) shows the partial/total mileage covered by the vehicle.

The type of mileage (trip or total) is made by pressing the button (C).

The trip mileagte is zeroed by keeping the button (C) pressed until the indicator (B) flashes three times and "0" is displayed.

B. Maintenance indicator display, trip meter/milometer

C. Button for zeroing trip meter/milometer, selecting maintenance indicator configuration

DIGITAL CLOCK

The clock (A) is set with the ignition key in position M (+15)

Hours adjustment

• By pressing the button (B) for at least three seconds, the display of the hours starts to flash, each time the button is pressed, the display moves on by one unit. Keeping the button pressed produces the fast forward function.

Minutes adjustment

• After having adjusted the hours, release the button (B), for a few moments and the minutes will start to flash.
• Use the button (B) in the same way as described for adjusting the hours.
• After five seconds have elapsed since releasing the button, the figures remain on constantly and the clock resumes regular operation.
