55 Electrical equipmentInstrument panel wiring diagram

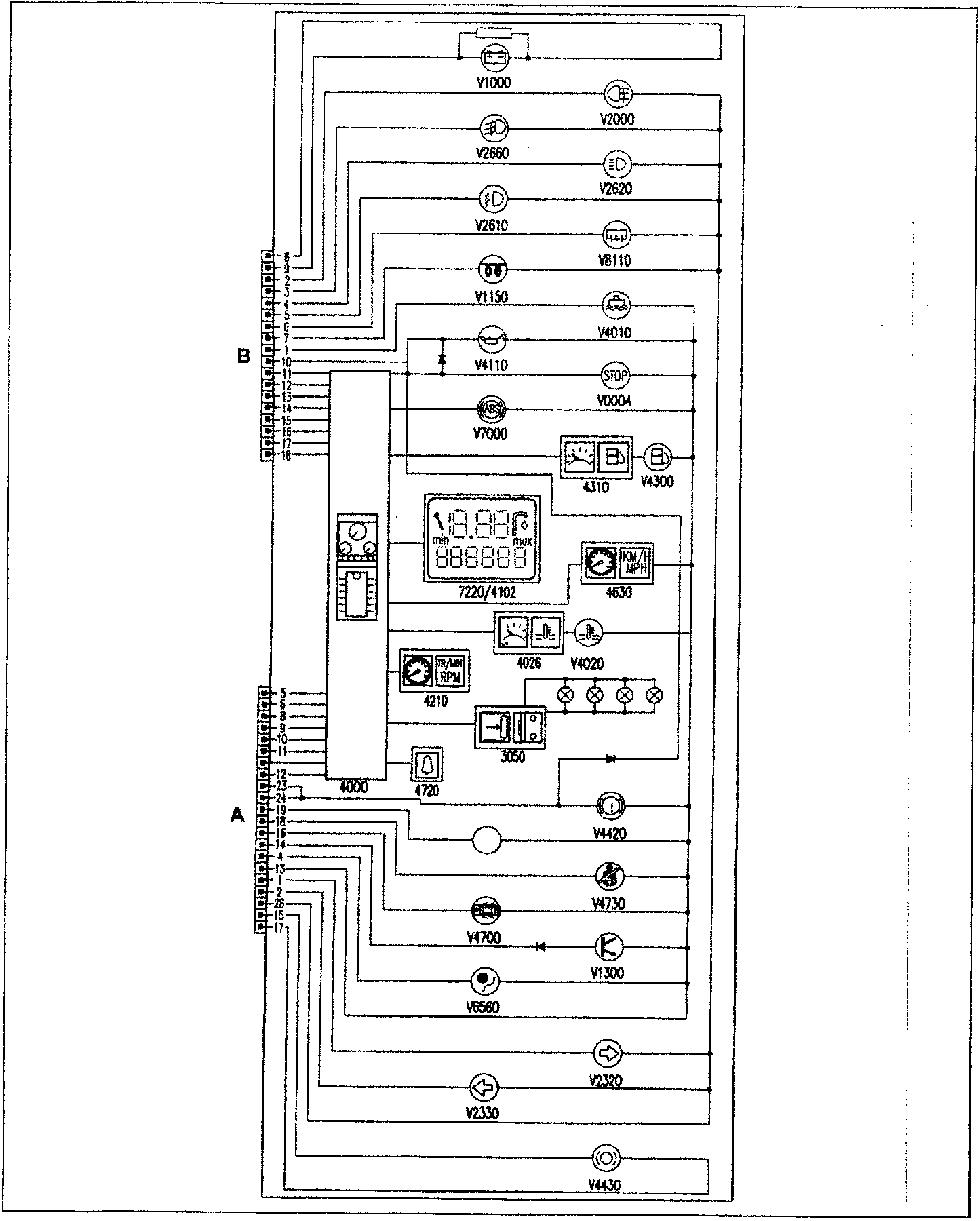

Instrument panel wiring diagram

Instrument panel wiring diagram showing connections between components V1000, V2000, V2660, V2620, V2610, VB110, V1150, V4010, V4110, V0004, V7000, 4310, V4300, 7220/4102, 4630, 4026, V4020, 4210, 3050, 4000, 4720, V4420, V4730, V4700, V1300, V6560, V2320, V2330, and V4430. Connectors A and B are shown on the left side with numbered pins.
Component labels visible in diagram: V1000, V2000, V2660, V2620, V2610, VB110, V1150, V4010, V4110, STOP, V0004, V7000, 4310, V4300, 7220/4102, 4630, 4026, V4020, 4210, 3050, 4000, 4720, V4420, V4730, V4700, V1300, V6560, V2320, V2330, V4430. Connector labels: A, B.
