55 Electrical equipmentMaintenance intervals below 1000 Km

Maintenance intervals below 1000 Km

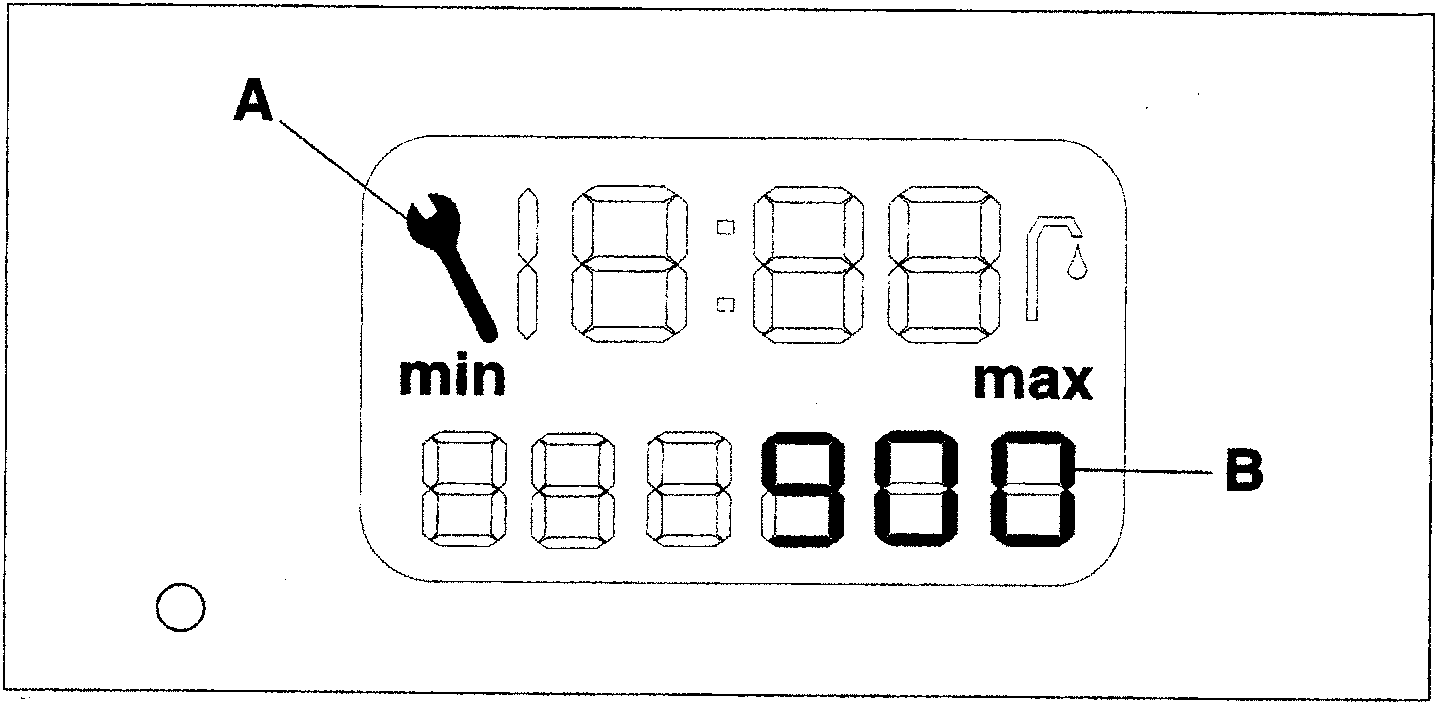

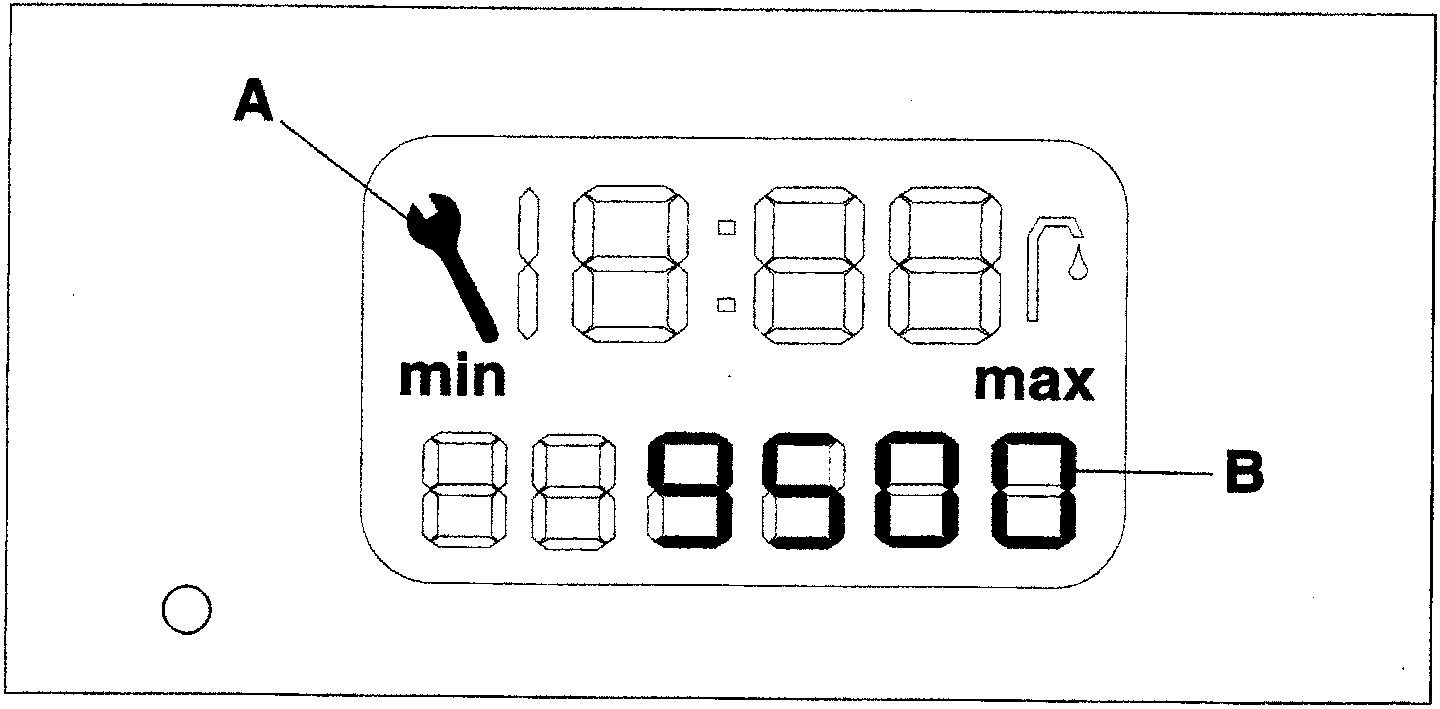

During the five seconds after the ignition key has been turned to position M, the following maintenance indicator conditions exist:

• The maintenance warning light (A) comes on.
• The display (B) shows the distance remaining until the next service.

After the five seconds have elapsed:

• The maintenance warningl light (A) remains on to signal an imminent check shortly.
• The display (B) shows the partial or total mileage.
