Instrument panel

Instrument panel

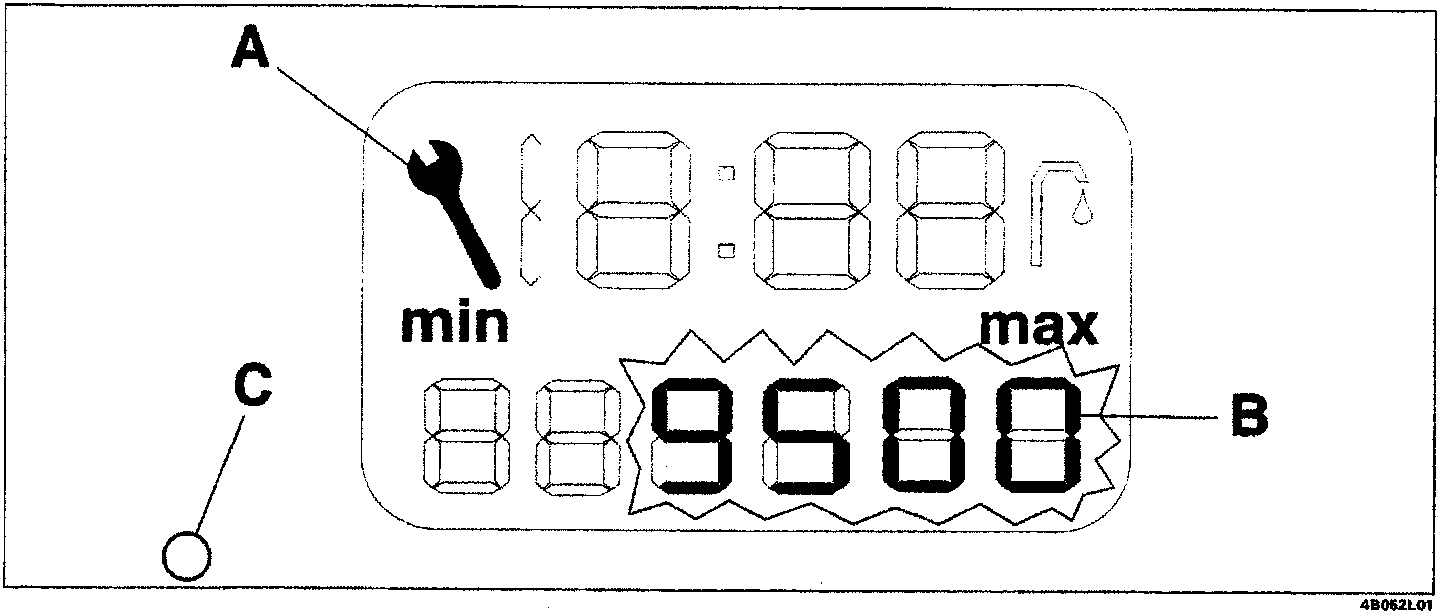

• The maintenance warning light (A) comes on.
• The mileage until the next service starts to flash on the display (B).
• Release the button (C) immediately.

• The maintenance interval appears on the display (B).
• Each time button (C) is pressed briefly the maintenance interval can be set (see planned maintenance programme table).

• Once the selection is made, press button (C) for ten seconds, the maintenance interval chosen will flash for 10 seconds.
• Release the button (C) to confirm as soon as the display stops flashing.
• The partial or total mileage will appear on the display (B).
• Turn the ignition key to position S or start up the engine.
• The setting procedure is over.

NOTE The maintenance distance and time data are entered into the maintenance indicator memory.
If the battery is disconnected, the calculation of the time is interrupted, counting resumes as soon as the battery connection is restored, then the system keeps the configuration prior to the interruption in the supply.
The distance remaining or exceeded in relation to the maintenance interval is rounded down to the nearest hundredth of a kilometre.
