55 Electrical equipmentDisconnect - reconnect headlight levelling motor

DISCONNECT - RECONNECT HEADLIGHT LEVELLING MOTOR

Disconnect the negative battery cable.

• Lift the engine compartment cover.

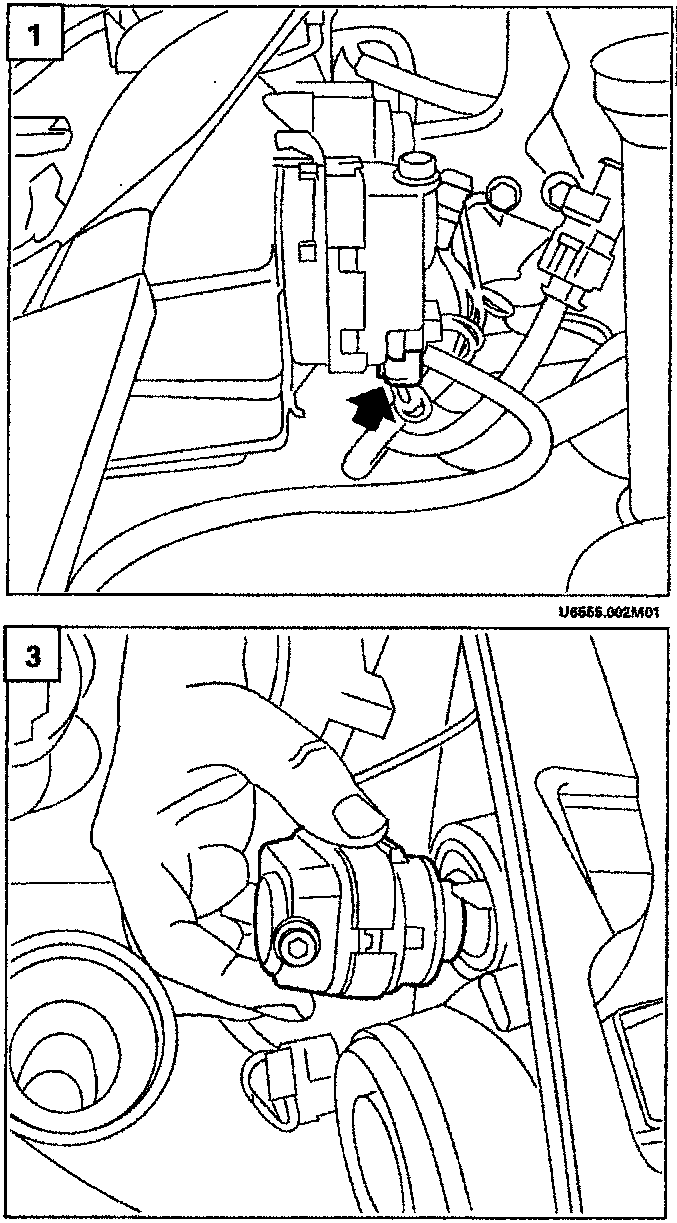

1. Disconnect the connector of the headlight levelling motor.

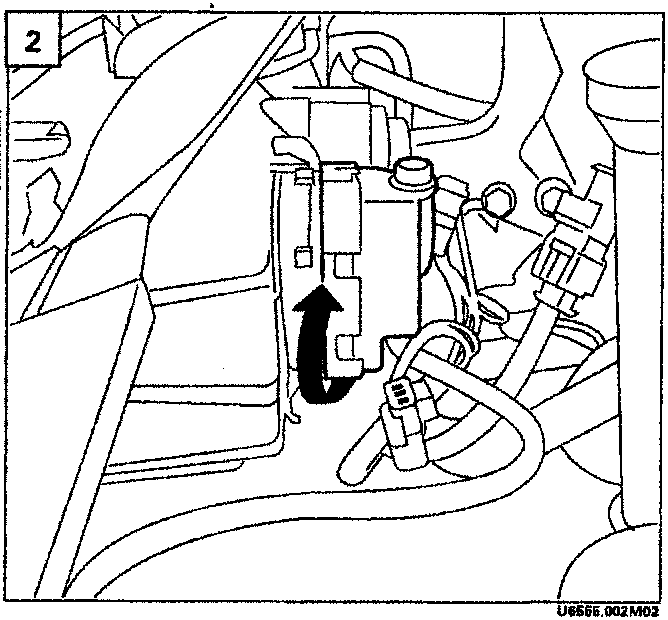

2. Rotate the headlight levelling motor in the direction of the arrow.
3. Unclip the motor from its housing.

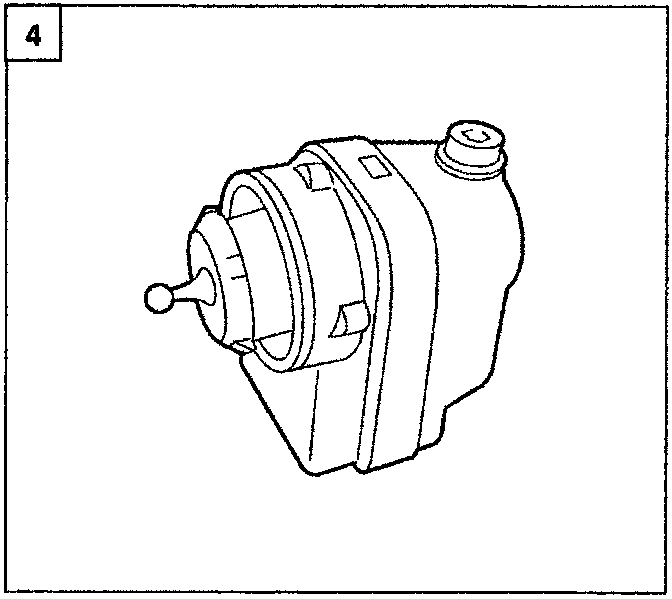

4. Remove the headlight levelling motor from the vehicle.
