55 Electrical equipmentRemoval - fitting front light group
Front view of the vehicle with bonnet open
Detail of wiring connectors behind the front bumper area

REMOVAL - FITTING FRONT LIGHT GROUP

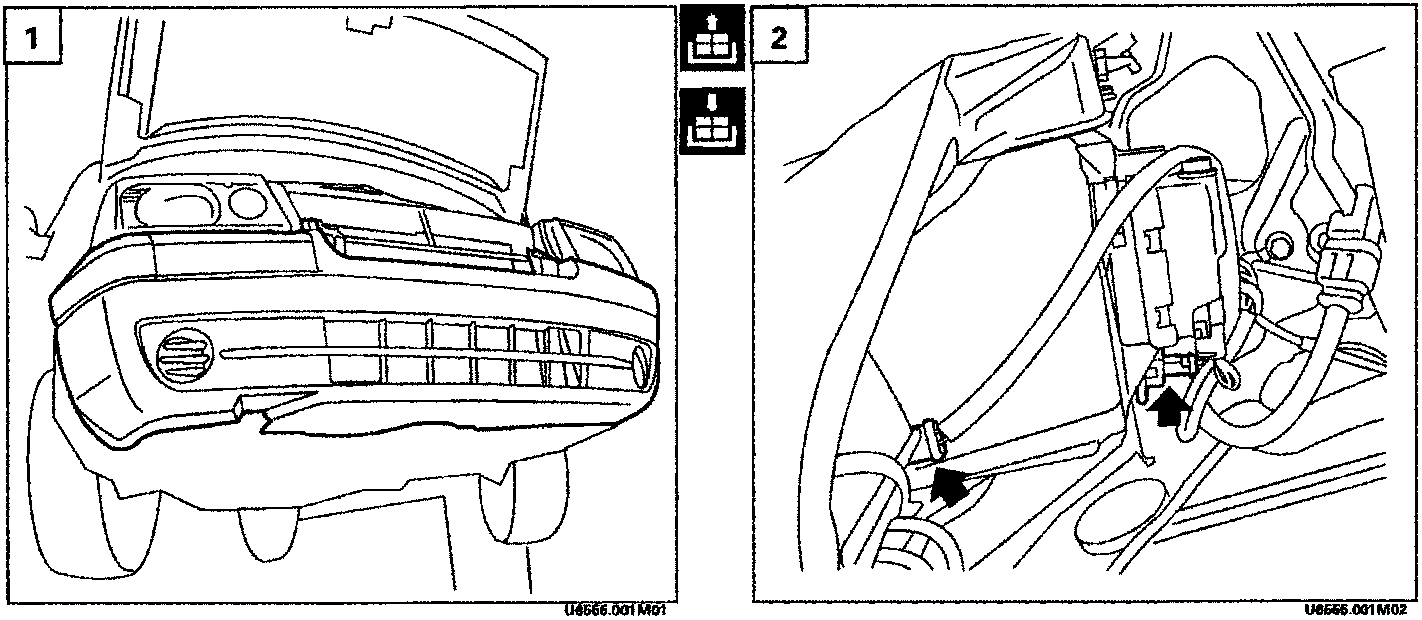

  1. Remove the front bumper as described in section “70 Bodywork” pages 1 and 2.

Disconnect the negative battery cable.

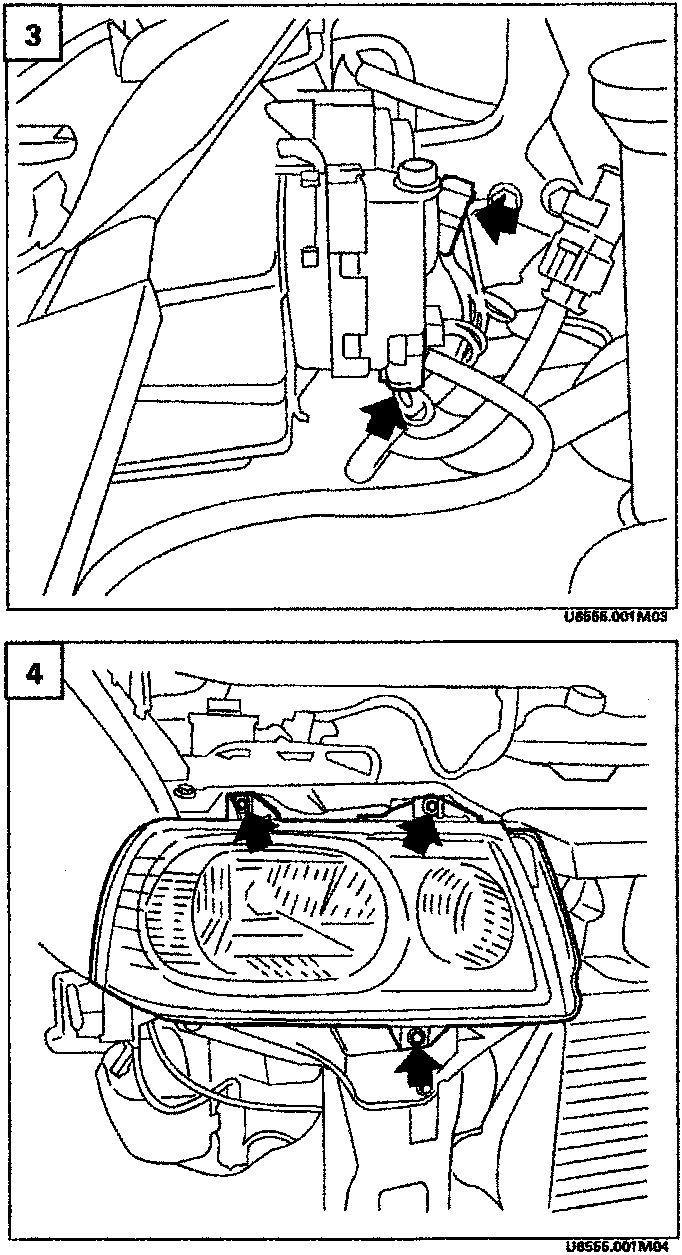

  1. Disconnect the connector for the sidelight bulb and the connector for the front direction indicator bulb.
  2. Disconnect the connector for the dipped beam bulb and the connector for the headlight levelling device.
  3. Unscrew the screws securing the light group.
  4. Remove the front light group from its housing.

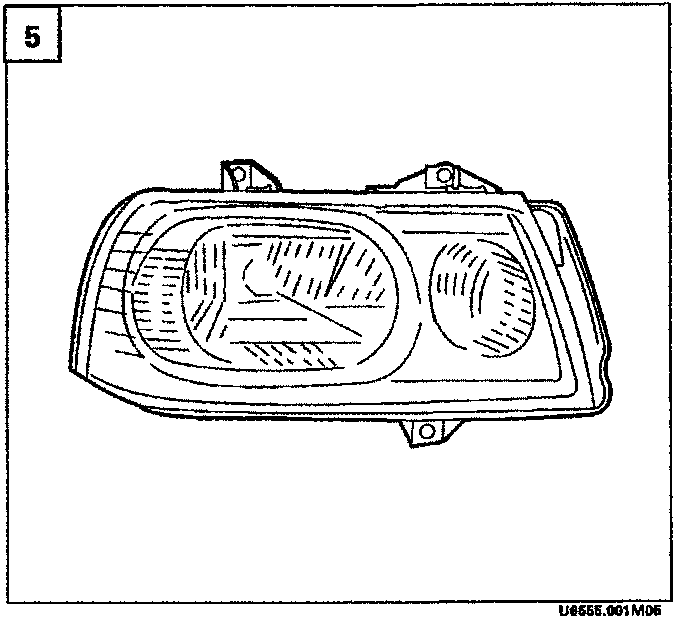

Front headlight assembly removed from the vehicle
