55 Electrical equipmentInstrument panel connections

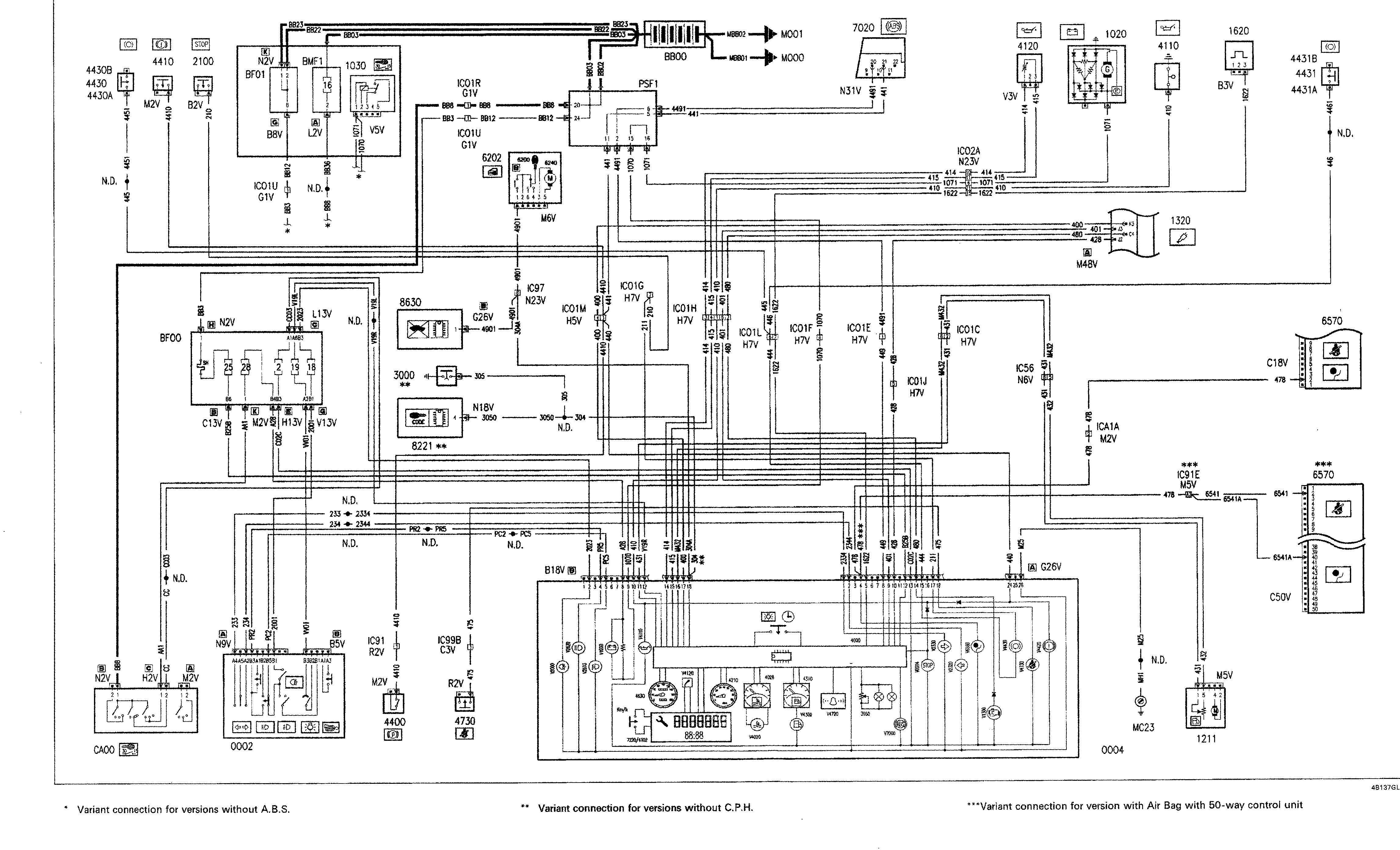

Instrument panel connections
* Variant connection for versions without A.B.S.
** Variant connection for versions without C.P.H.
***Variant connection for version with Air Bag with 50-way control unit
