Pretensioners
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams (2000 update, part 2) › Pretensioners
‹ Prev Location of components on vehicle – Windscreen wash/wipe – Horn (with A.B.S)Next › N.A. Ultrasound welding taped in cable loom
55 Electrical equipmentPretensioners

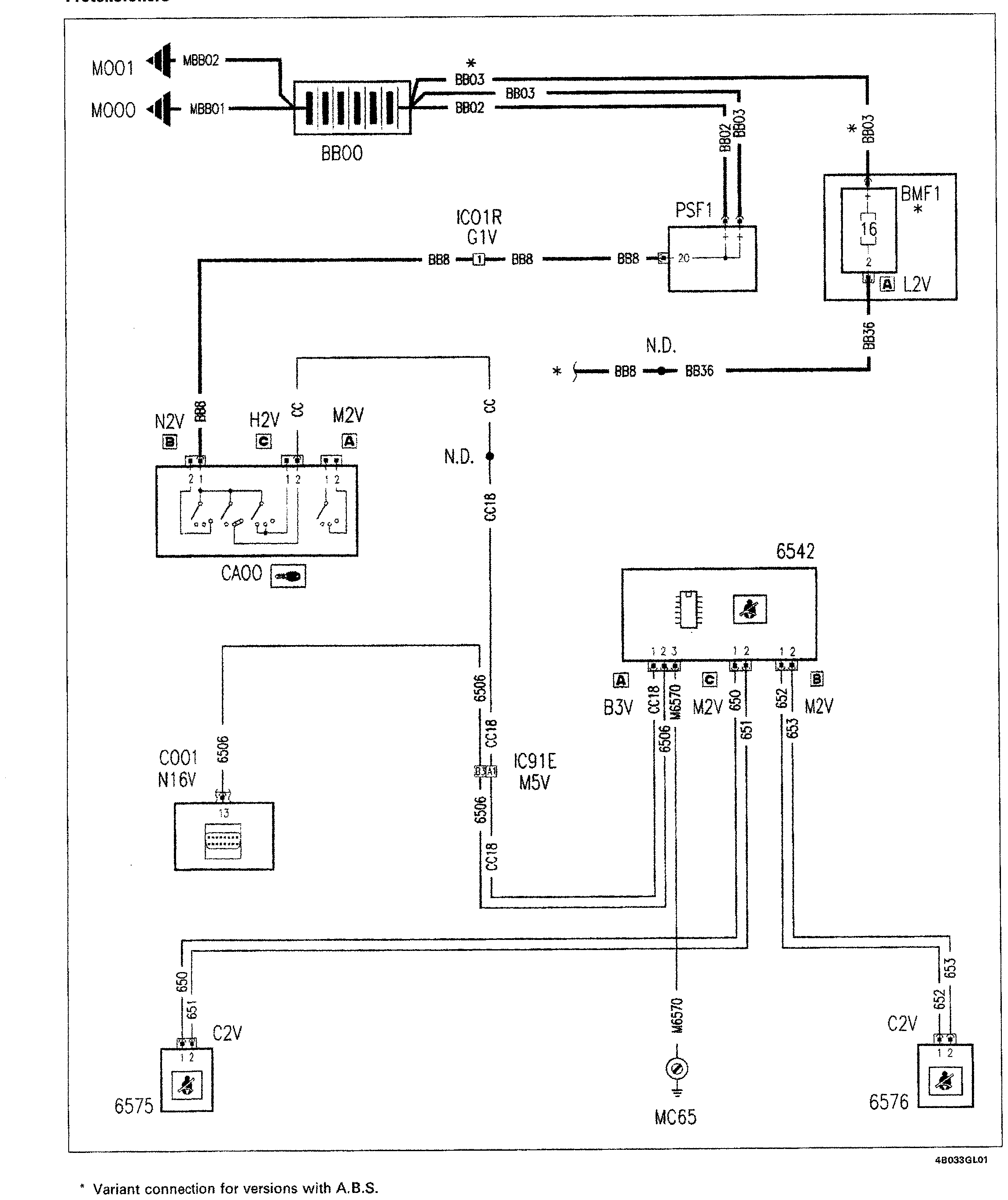

Pretensioners – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
Pretensioners
* Variant connection for versions with A.B.S.
