- Wiring diagrams (2000 update, part 2) › Perspective views
‹ Prev Comprehensive perspective view showing location of cable loom and components (with automatic transmission)Next › Comprehensive perspective view of dashboard showing location of cable loom and components
55 Electrical equipmentPerspective views
Perspective views

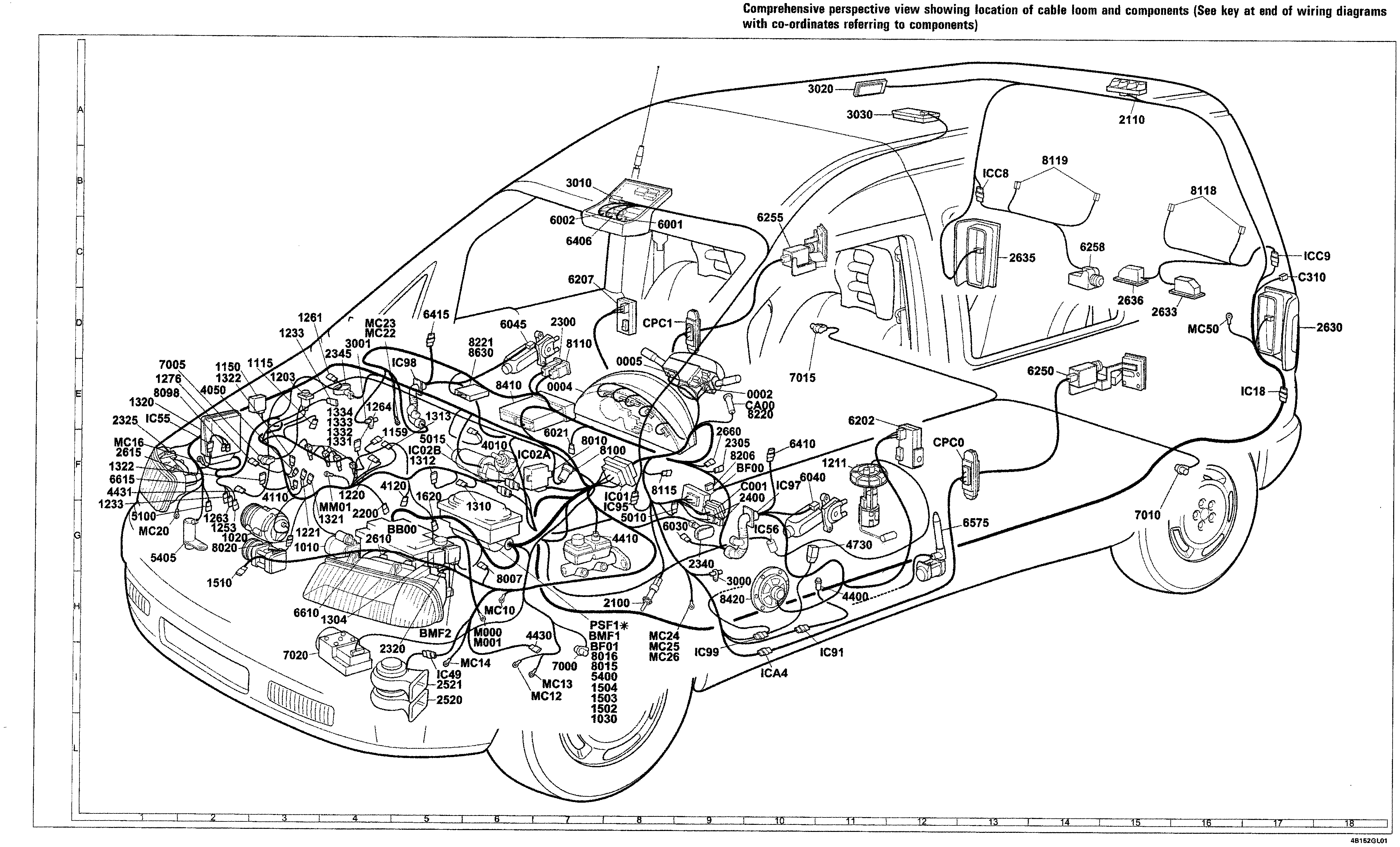

Comprehensive perspective view showing location of cable loom and components (See key at end of wiring diagrams with co-ordinates referring to components)
