GMC Savana 3500 V8-4.8L (2009)17 · Lighting and Horns
17 · Electrical

Underhood Lamp: Diagrams

Make
GMC
Model
Savana 3500
Engine
V8-4.8L
Year
2009
Section
Underhood Lamp › Diagrams
Lighting and HornsDiagrams · page 1 of 2
background image

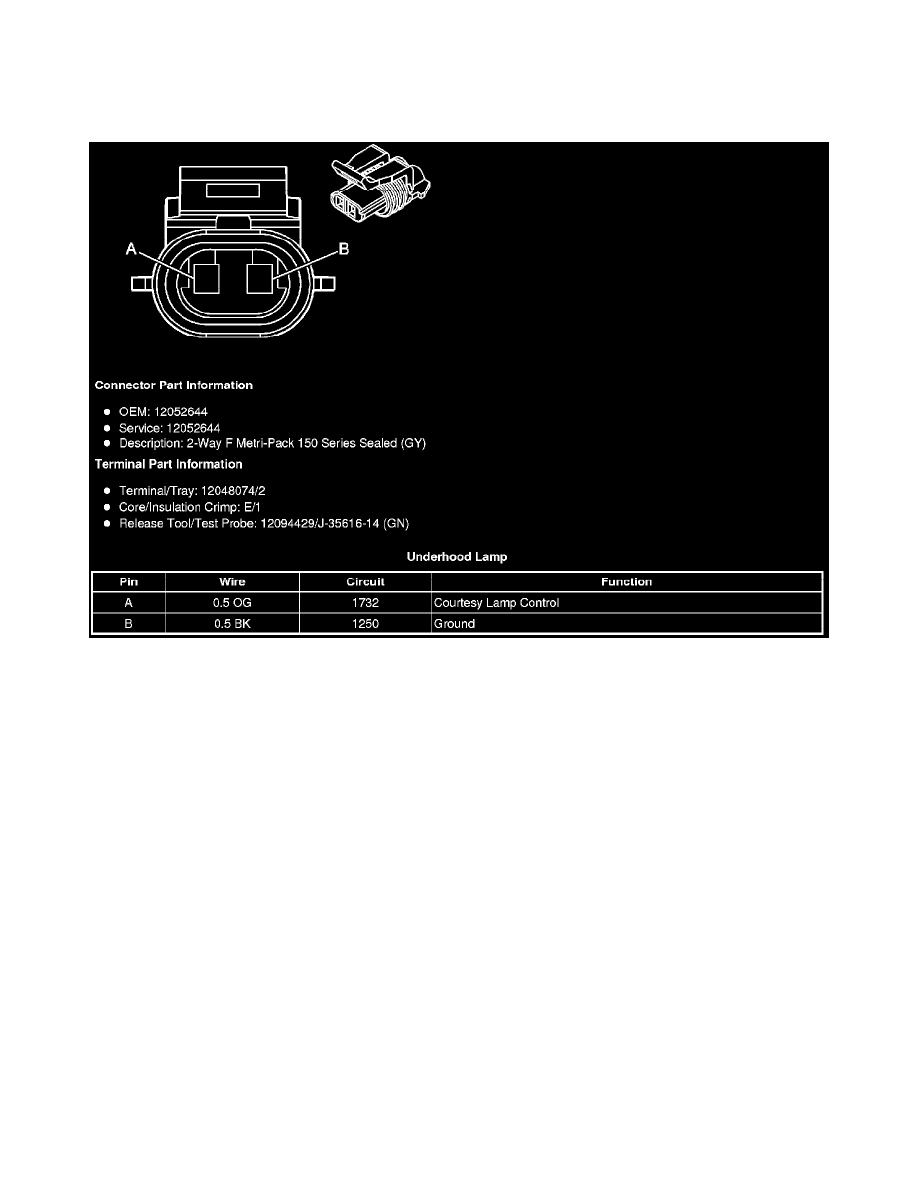

Underhood Lamp: Diagrams

Component Connector End Views

Underhood Lamp

Pinch or Ctrl + scroll to zoom. Double-tap to reset.
