Timing Belt|Diagrams|Page 919 > < Timing Belt|Diagrams

Optima L4-2.4L VIN 6 (2006)

Page 1
background image

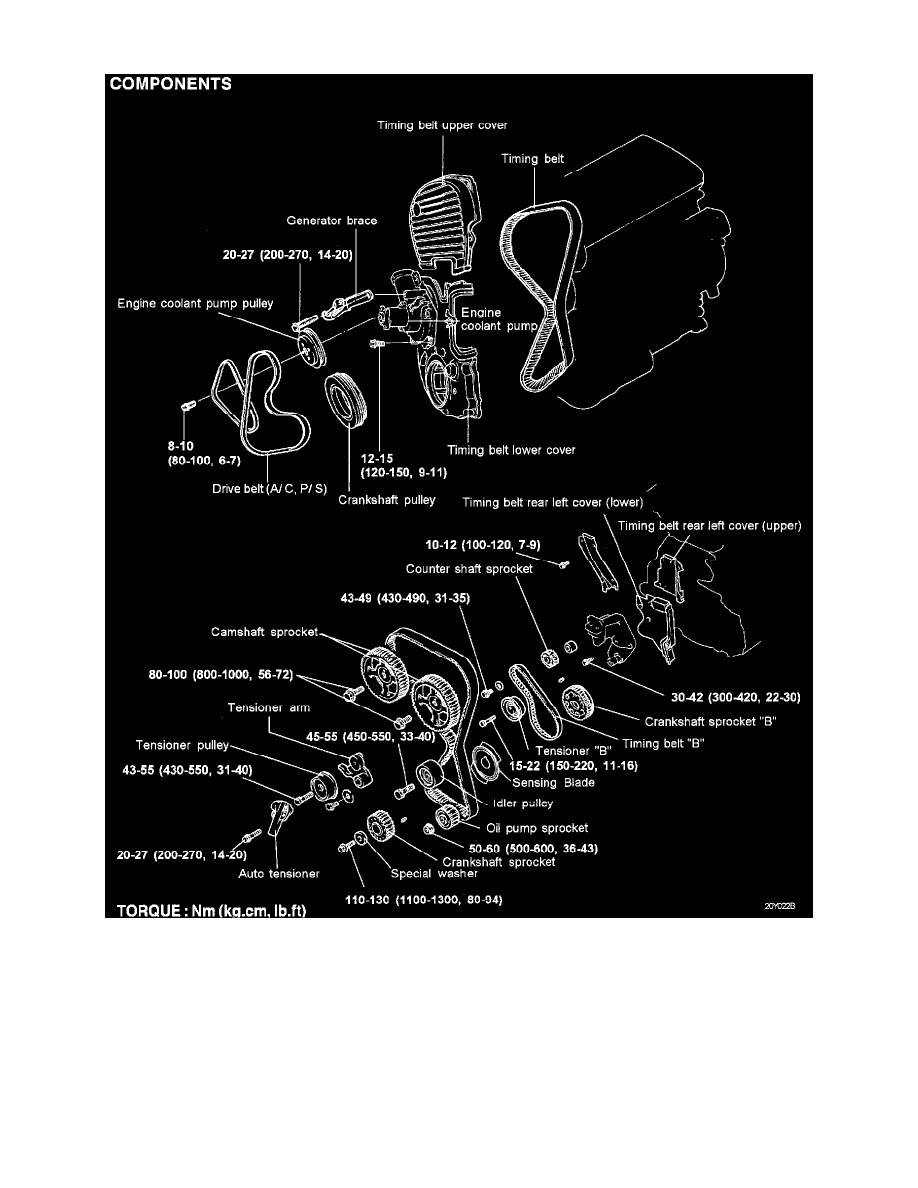

Timing Belt: Service and Repair

REMOVAL

1. Remove the crankshaft pulley, engine coolant pump pulley and drive belt.
2. Remove the timing belt cover.
