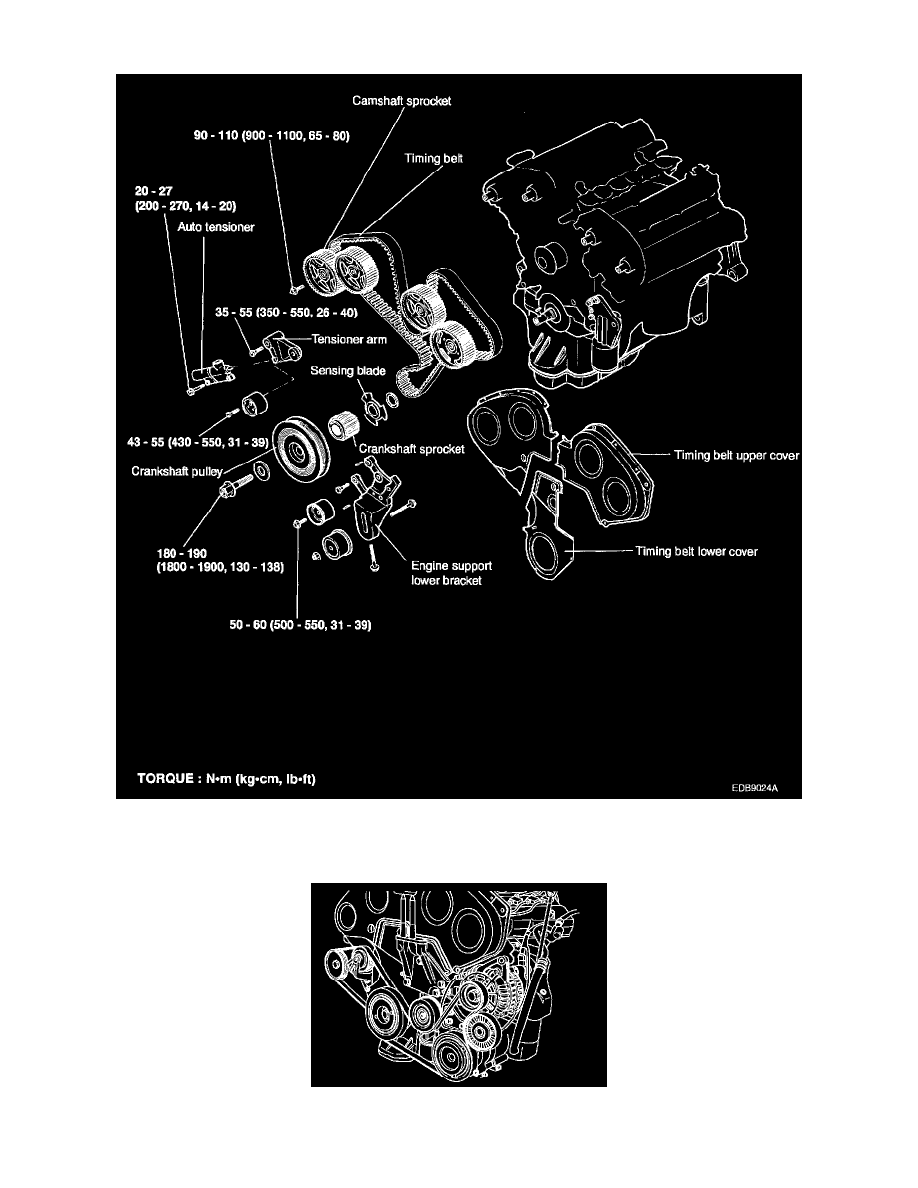

Timing Belt: Service and Repair

Removal

1. Remove the engine cover.
2. Remove the drive belt.

3. Remove the idler pulley, crankshaft pulley, power steering pulley and tensioner pulley.
