REAR WINDSCREEN – Noise - Service Solution

Service news 70.10.03

REAR WINDSCREEN

Noise - Service Solution

FAULT COMPLAINED OF

Noise coming from the rear of the vehicle, in the area of the rearscreen, over unmade roads or during take-off.

TECHNICAL CAUSE

Movement of the lip of the seal in relation to the rearscreen housing.

OPERATIONS IN NETWORK

Network behaviour standards towards the Customer

• When this problem is reported and confirmed, reassure the Customer that it can be solved by apply a special fluid.
• After the operation, show the Customer the work that has been done and make sure that they are satisfied.

Service Solution: If this problem is reported and confirmed, apply Krytox GPL 105 to the entire inner perimeter (in contact with the rearscreen housing) of the seal.

OPERATING CYCLE

Carry out the following operations working the rearscreen seal:

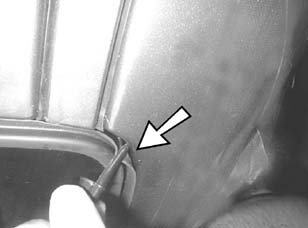

• Lift up the rearscreen seal using a plastic blade in order not to scratch the paintwork (Fig. 1).
• Clean the inner surface of the seal and the rearscreen housing using a cloth and compressed air in order to remove any traces of dust/dirt.
• Apply Krytox GPL 105 (available on the local market) to the seal and the rearscreen housing; use a small brush or a cotton bud for this operation, taking care to distribute the product as evenly as possible on the surfaces.

Fig. 1
