Power distribution

POWER DISTRIBUTION

HEADERS

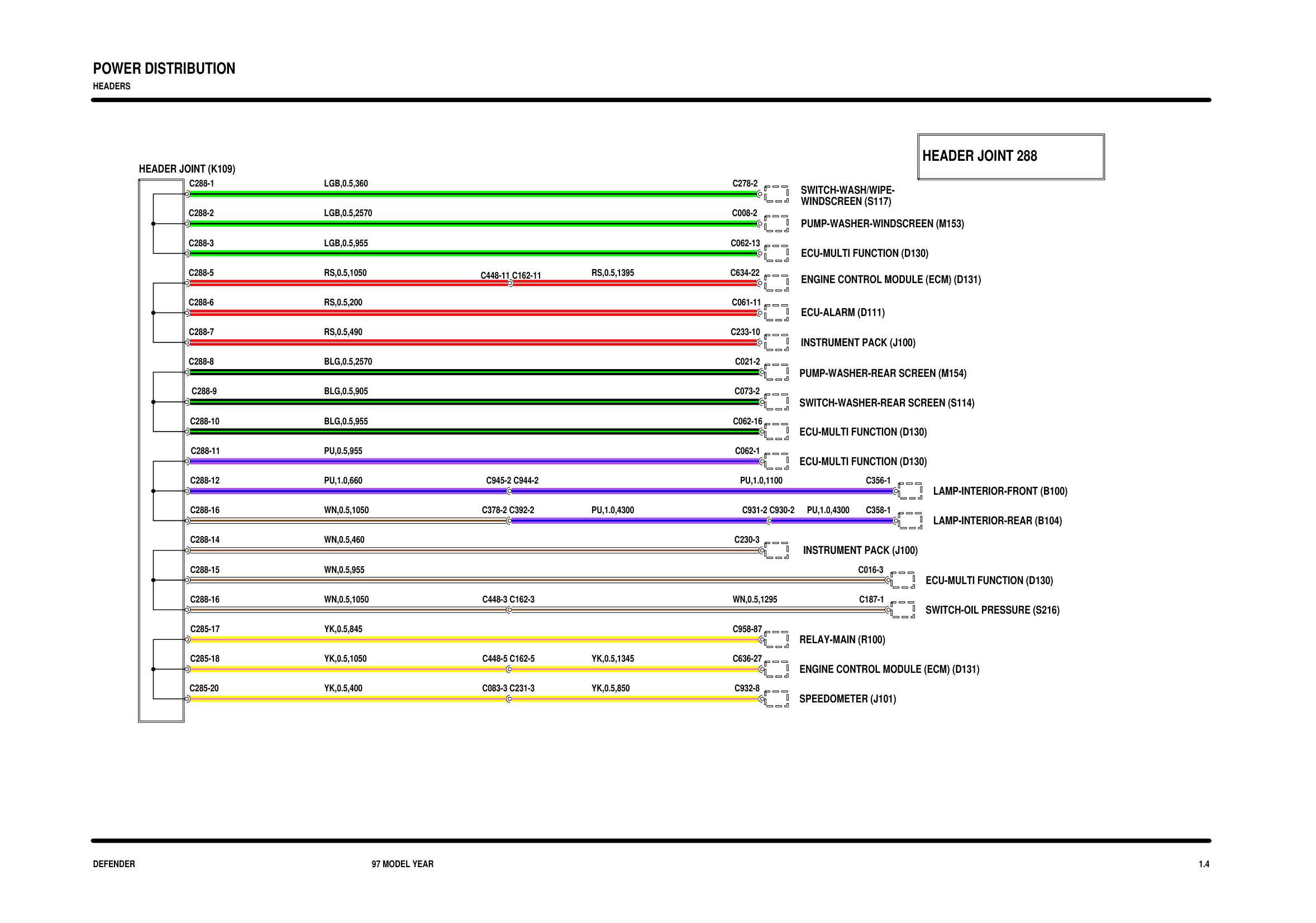

HEADER JOINT 288

HEADER JOINT (K109)

C288-1 LGB,0.5,360 C278-2

SWITCH-WASH/WIPE-

WINDSCREEN (S117)

C288-2 LGB,0.5,2570 C008-2

PUMP-WASHER-WINDSCREEN (M153)

C288-3 LGB,0.5,955 C062-13

ECU-MULTI FUNCTION (D130)

C288-5 RS,0.5,1050 C448-11 C162-11 RS,0.5,1395 C634-22

ENGINE CONTROL MODULE (ECM) (D131)

C288-6 RS,0.5,200 C061-11

ECU-ALARM (D111)

C288-7 RS,0.5,490 C233-10

INSTRUMENT PACK (J100)

C288-8 BLG,0.5,2570 C021-2

PUMP-WASHER-REAR SCREEN (M154)

C288-9 BLG,0.5,905 C073-2

SWITCH-WASHER-REAR SCREEN (S114)

C288-10 BLG,0.5,955 C062-16

ECU-MULTI FUNCTION (D130)

C288-11 PU,0.5,955 C062-1

ECU-MULTI FUNCTION (D130)

C288-12 PU,1.0,660 C945-2 C944-2 PU,1.0,1100 C356-1

LAMP-INTERIOR-FRONT (B100)

C288-16 WN,0.5,1050 C378-2 C392-2 PU,1.0,4300 C931-2 C930-2 PU,1.0,4300 C358-1

LAMP-INTERIOR-REAR (B104)

C288-14 WN,0.5,460 C230-3

INSTRUMENT PACK (J100)

C288-15 WN,0.5,955 C016-3

ECU-MULTI FUNCTION (D130)

C288-16 WN,0.5,1050 C448-3 C162-3 WN,0.5,1295 C187-1

SWITCH-OIL PRESSURE (S216)

C285-17 YK,0.5,845 C958-87

RELAY-MAIN (R100)

C285-18 YK,0.5,1050 C448-5 C162-5 YK,0.5,1345 C636-27

ENGINE CONTROL MODULE (ECM) (D131)

C285-20 YK,0.5,400 C083-3 C231-3 YK,0.5,850 C932-8

SPEEDOMETER (J101)

DEFENDER 97 MODEL YEAR 1.4
