Power distribution

POWER DISTRIBUTION

HEADERS

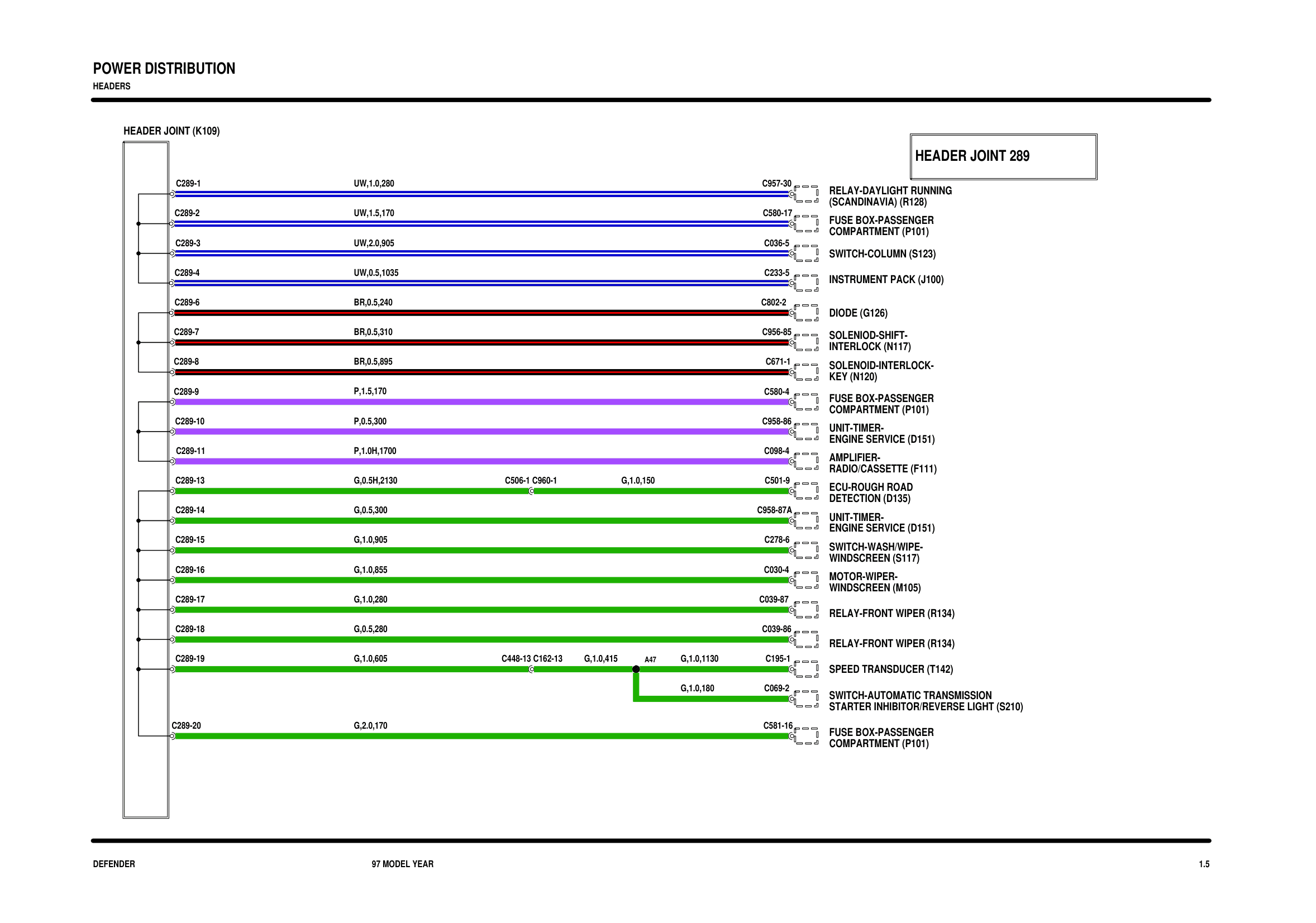

HEADER JOINT (K109)

HEADER JOINT 289

C289-1 UW,1.0,280 C957-30

RELAY-DAYLIGHT RUNNING

(SCANDINAVIA) (R128)

C289-2 UW,1.5,170 C580-17

FUSE BOX-PASSENGER

COMPARTMENT (P101)

C289-3 UW,2.0,905 C036-5

SWITCH-COLUMN (S123)

C289-4 UW,0.5,1035 C233-5

INSTRUMENT PACK (J100)

C289-6 BR,0.5,240 C802-2

DIODE (G126)

C289-7 BR,0.5,310 C956-85 SOLENIOD-SHIFT-

INTERLOCK (N117)

C289-8 BR,0.5,895 C671-1 SOLENOID-INTERLOCK-

KEY (N120)

C289-9 P,1.5,170 C580-4

FUSE BOX-PASSENGER

COMPARTMENT (P101)

C289-10 P,0.5,300 C958-86

UNIT-TIMER-

ENGINE SERVICE (D151)

C289-11 P,1.0H,1700 C098-4

AMPLIFIER-

RADIO/CASSETTE (F111)

C289-13 G,0.5H,2130 C506-1 C960-1 G,1.0,150 C501-9

ECU-ROUGH ROAD

DETECTION (D135)

C289-14 G,0.5,300 C958-87A

UNIT-TIMER-

ENGINE SERVICE (D151)

C289-15 G,1.0,905 C278-6

SWITCH-WASH/WIPE-

WINDSCREEN (S117)

C289-16 G,1.0,855 C030-4

MOTOR-WIPER-

WINDSCREEN (M105)

C289-17 G,1.0,280 C039-87

RELAY-FRONT WIPER (R134)

C289-18 G,0.5,280 C039-86

RELAY-FRONT WIPER (R134)

C289-19 G,1.0,605 C448-13 C162-13 G,1.0,415 A47 G,1.0,1130 C195-1

SPEED TRANSDUCER (T142)

G,1.0,180 C069-2

SWITCH-AUTOMATIC TRANSMISSION

STARTER INHIBITOR/REVERSE LIGHT (S210)

C289-20 G,2.0,170 C581-16

FUSE BOX-PASSENGER

COMPARTMENT (P101)

DEFENDER 97 MODEL YEAR 1.5
