Power distribution

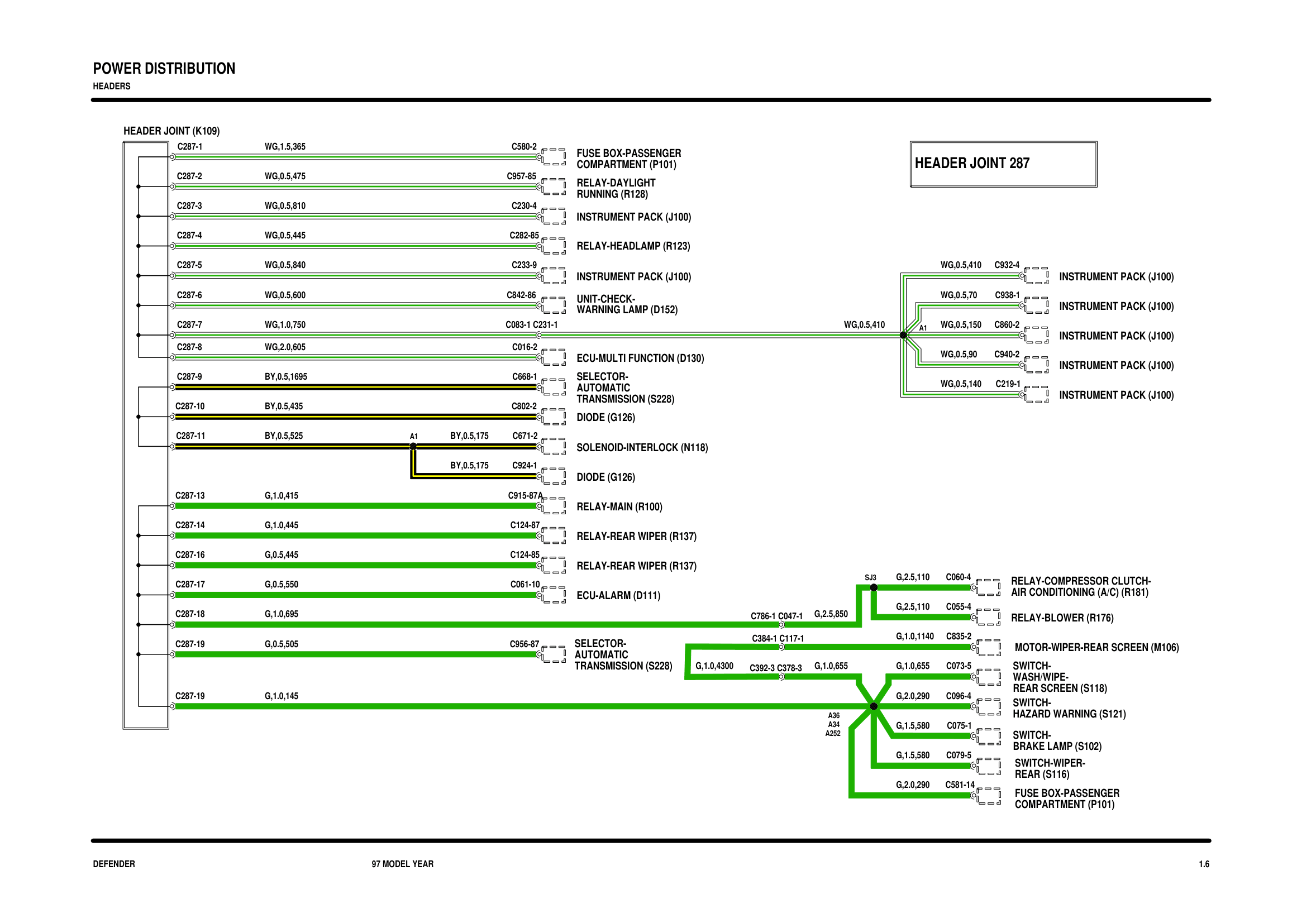

POWER DISTRIBUTION

HEADERS

HEADER JOINT (K109)

C287-1 WG,1.5,365 C580-2

FUSE BOX-PASSENGER

COMPARTMENT (P101) HEADER JOINT 287

C287-2 WG,0.5,475 C957-85

RELAY-DAYLIGHT

RUNNING (R128)

C287-3 WG,0.5,810 C230-4

INSTRUMENT PACK (J100)

C287-4 WG,0.5,445 C282-85

RELAY-HEADLAMP (R123)

C287-5 WG,0.5,840 C233-9 WG,0.5,410 C932-4

INSTRUMENT PACK (J100) INSTRUMENT PACK (J100)

C287-6 WG,0.5,600 C842-86 UNIT-CHECK- WG,0.5,70 C938-1

WARNING LAMP (D152) INSTRUMENT PACK (J100)

C287-7 WG,1.0,750 C083-1 C231-1 WG,0.5,410 A1 WG,0.5,150 C860-2

INSTRUMENT PACK (J100)

C287-8 WG,2.0,605 C016-2

ECU-MULTI FUNCTION (D130) WG,0.5,90 C940-2

INSTRUMENT PACK (J100)

C287-9 BY,0.5,1695 C668-1 SELECTOR-

AUTOMATIC WG,0.5,140 C219-1

TRANSMISSION (S228) INSTRUMENT PACK (J100)

C287-10 BY,0.5,435 C802-2

DIODE (G126)

C287-11 BY,0.5,525 A1 BY,0.5,175 C671-2

SOLENOID-INTERLOCK (N118)

BY,0.5,175 C924-1

DIODE (G126)

C287-13 G,1.0,415 C915-87A

RELAY-MAIN (R100)

C287-14 G,1.0,445 C124-87

RELAY-REAR WIPER (R137)

C287-16 G,0.5,445 C124-85

RELAY-REAR WIPER (R137)

SJ3 G,2.5,110 C060-4 RELAY-COMPRESSOR CLUTCH-

C287-17 G,0.5,550 C061-10

ECU-ALARM (D111) AIR CONDITIONING (A/C) (R181)

G,2.5,110 C055-4

C287-18 G,1.0,695 C786-1 C047-1 G,2.5,850 RELAY-BLOWER (R176)

C384-1 C117-1 G,1.0,1140 C835-2

C287-19 G,0.5,505 C956-87 SELECTOR- MOTOR-WIPER-REAR SCREEN (M106)

AUTOMATIC

TRANSMISSION (S228) G,1.0,4300 C392-3 C378-3 G,1.0,655 G,1.0,655 C073-5 SWITCH-

WASH/WIPE-

REAR SCREEN (S118)

C287-19 G,1.0,145 G,2.0,290 C096-4

SWITCH-

A36 HAZARD WARNING (S121)

A34 G,1.5,580 C075-1

A252 SWITCH-

BRAKE LAMP (S102)

G,1.5,580 C079-5

SWITCH-WIPER-

REAR (S116)

G,2.0,290 C581-14

FUSE BOX-PASSENGER

COMPARTMENT (P101)
