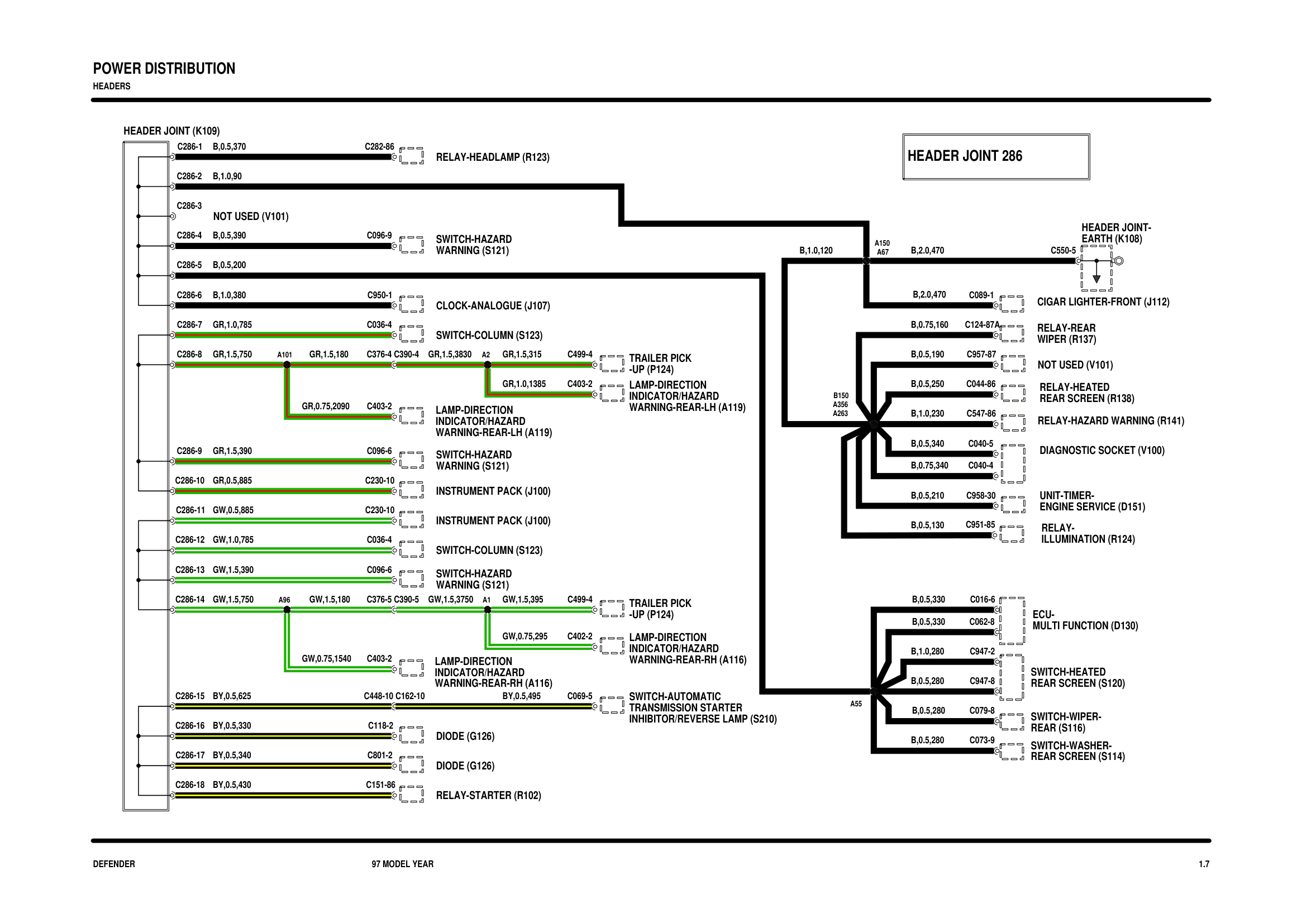

Power distribution

POWER DISTRIBUTION

HEADERS

HEADER JOINT (K109)

C286-1 B,0.5,370 C282-86

RELAY-HEADLAMP (R123) HEADER JOINT 286

C286-2 B,1.0,90

C286-3

NOT USED (V101)

HEADER JOINT-

C286-4 B,0.5,390 C096-9 SWITCH-HAZARD EARTH (K108)

A150

WARNING (S121) B,1.0,120 A67 B,2.0,470 C550-5

C286-5 B,0.5,200

C286-6 B,1.0,380 C950-1 B,2.0,470 C089-1

CLOCK-ANALOGUE (J107) CIGAR LIGHTER-FRONT (J112)

C286-7 GR,1.0,785 C036-4 B,0.75,160 C124-87A RELAY-REAR

SWITCH-COLUMN (S123) WIPER (R137)

C286-8 GR,1.5,750 A101 GR,1.5,180 C376-4 C390-4 GR,1.5,3830 A2 GR,1.5,315 C499-4 TRAILER PICK B,0.5,190 C957-87

-UP (P124) NOT USED (V101)

GR,1.0,1385 C403-2 LAMP-DIRECTION B,0.5,250 C044-86 RELAY-HEATED

INDICATOR/HAZARD B150 REAR SCREEN (R138)

GR,0.75,2090 C403-2 WARNING-REAR-LH (A119) A356

LAMP-DIRECTION A263 B,1.0,230 C547-86

INDICATOR/HAZARD RELAY-HAZARD WARNING (R141)

WARNING-REAR-LH (A119)

B,0.5,340 C040-5

C286-9 GR,1.5,390 C096-6 SWITCH-HAZARD DIAGNOSTIC SOCKET (V100)

WARNING (S121) B,0.75,340 C040-4

C286-10 GR,0.5,885 C230-10

INSTRUMENT PACK (J100) B,0.5,210 C958-30 UNIT-TIMER-

C286-11 GW,0.5,885 C230-10 ENGINE SERVICE (D151)

INSTRUMENT PACK (J100) B,0.5,130 C951-85

RELAY-

C286-12 GW,1.0,785 C036-4 ILLUMINATION (R124)

SWITCH-COLUMN (S123)

C286-13 GW,1.5,390 C096-6 SWITCH-HAZARD

WARNING (S121)

C286-14 GW,1.5,750 A96 GW,1.5,180 C376-5 C390-5 GW,1.5,3750 A1 GW,1.5,395 C499-4 TRAILER PICK B,0.5,330 C016-6

-UP (P124) ECU-

B,0.5,330 C062-8 MULTI FUNCTION (D130)

GW,0.75,295 C402-2 LAMP-DIRECTION

INDICATOR/HAZARD B,1.0,280 C947-2

GW,0.75,1540 C403-2 LAMP-DIRECTION WARNING-REAR-RH (A116)

INDICATOR/HAZARD SWITCH-HEATED

WARNING-REAR-RH (A116) B,0.5,280 C947-8 REAR SCREEN (S120)

C286-15 BY,0.5,625 C448-10 C162-10 BY,0.5,495 C069-5 SWITCH-AUTOMATIC

TRANSMISSION STARTER A55

B,0.5,280 C079-8

INHIBITOR/REVERSE LAMP (S210) SWITCH-WIPER-

C286-16 BY,0.5,330 C118-2 REAR (S116)

DIODE (G126) B,0.5,280 C073-9

SWITCH-WASHER-

C286-17 BY,0.5,340 C801-2 REAR SCREEN (S114)

DIODE (G126)

C286-18 BY,0.5,430 C151-86

RELAY-STARTER (R102)

DEFENDER 97 MODEL YEAR 1.7
