Fault diagnostic equipment reading this manual

FAULT DIAGNOSTIC EQUIPMENT READING THIS MANUAL

TESTBOOK This manual is divided into sections shown on the contents page, alongside a range of icons, familiar to service technicians.

Relevant information is contained within each of these sections. These are further divided into the following sub-sections which appear at the foot of each page :-

• Description and operation.
• Fault diagnosis.
• Adjustment.
• Repair.
• Overhaul.
• Specifications, Torque.

To avoid repeating information through the sections, where part of the repair operation impacts on another section, a cross reference is given to direct the reader to where the information is sited.

For example:

Land Rover Vehicles are equipped with substantial

The maintenance section states the need to renew

electronics to provide the best performance from the

drive belt. A cross reference sites this information in:

vehicle systems.

Section 12 Engine - Sub-section: Repairs

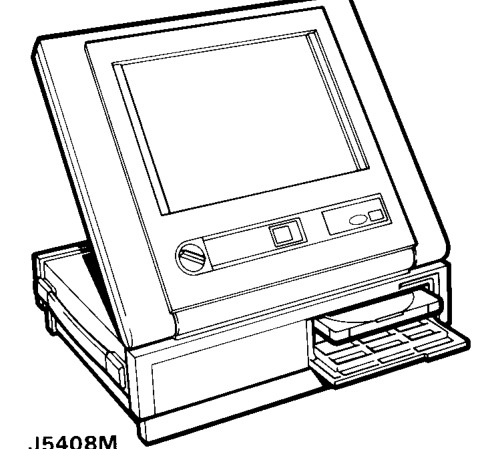

Diagnostic equipment named TestBook is available to

- Heading: Drive belt renew.

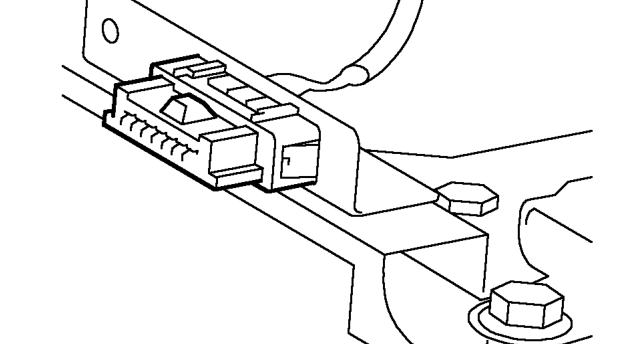

expand the diagnostic and fault finding abilities of the Dealer workshop. A diagnostic connector, located below the passenger compartment fuse box, is provided to facilitate the procedures. This repair manual is produced with TestBook in mind. Features of TestBook include:-

• Fully upgradable support for the technician.
• Structured diagnostics to accomodate all skill levels.
• Touch screen operation.
• Direct print out of screen information and test results.
