IntroductionLocation of identification numbers
LOCATION OF IDENTIFICATION NUMBERS

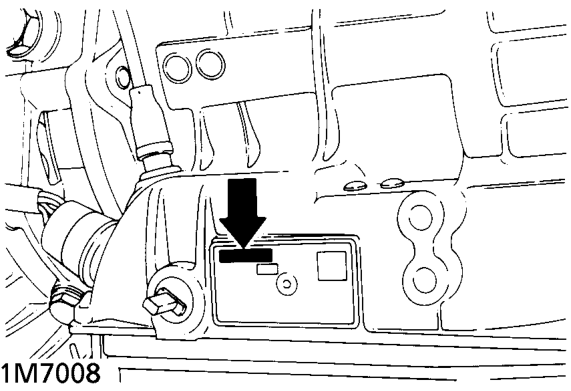

Transfer gearbox serial number
The serial number is stamped on the LH side of the Engine serial number - V8i Engine gearbox casing below the mainshaft rear bearing housing adjacent to the bottom cover. Stamped on a cast pad on the cylinder block, between numbers 3 and 5 cylinders.
- NOTE: The appropriate engine
- compression ratio is stamped above the
- serial number.

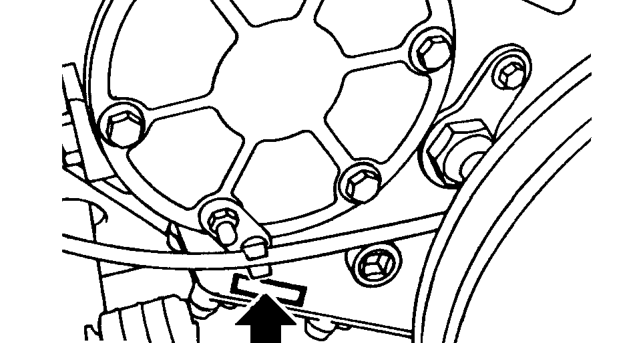

Automatic gearbox serial number
The serial number is stamped on a plate attached to the LH side of the casing.
