300Tdi Defender
88
INSTRUMENTS
4
REPAIR
PRINTED CIRCUIT - WARNING LIGHT PANEL
Service repair no - 88.20.20
Remove

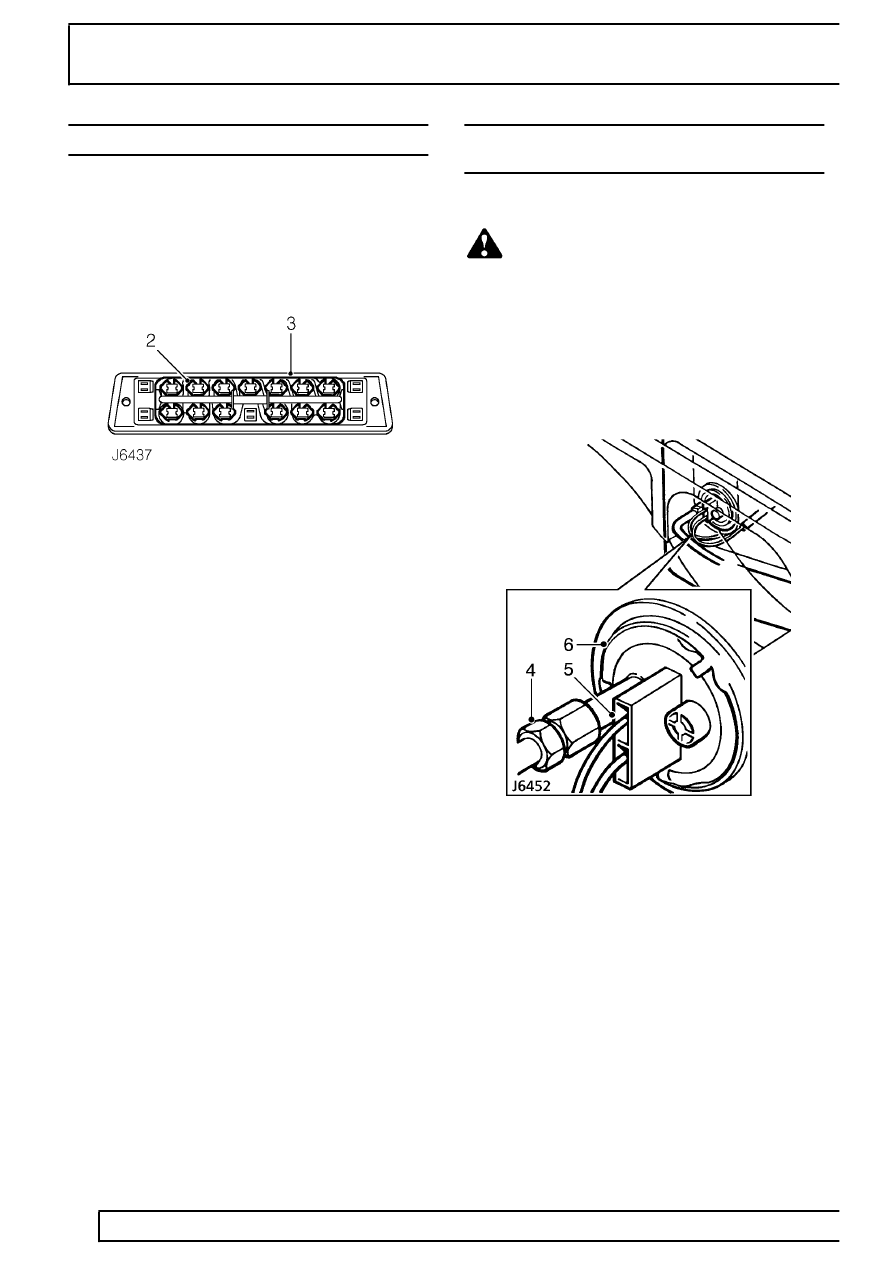

1. Remove warning light panel
See Warning light
panel .
2. Remove 13 illumination bulb holders from light
panel.
3. Release printed circuit from locating pins and
remove from panel seatings.
Refit
4. Fit new printed circuit over panel seatings and
position on locating pins.
5. Fit illumination bulbs to secure circuit.
6. Fit warning light panel
See Warning light
panel .
FUEL GAUGE TANK UNIT - REAR FUEL TANK,
110/130
Service repair no - 88.25.30
WARNING: Ensure that fuel handling
precautions given in Section 01 -
Introduction are strictly adhered to when
carrying out the following instructions.
Remove
1. Disconnect battery.
2. Remove fuel filler cap.
3. Remove tank drain plug, allow fuel to drain into a
clean container, and refit plug.
4. On LH side of tank, disconnect fuel supply pipe
from outlet pipe on fuel gauge unit.
5. Disconnect electrical plug from fuel gauge unit.
6. Release locking ring and withdraw fuel gauge
unit from tank, complete with sealing ring.
Refit
7. Insert gauge unit into tank with float positioned to
base of tank. Fit new sealing washer, if
necessary.
8. Secure gauge unit with locking ring.
9. Fit electrical plug and reconnect fuel supply pipe.
10. Refill fuel tank.
11. Reconnect battery.
