Land Rover Discovery Electrical Troubleshooting Manual (1996)30 · Interior lamps
30 · Body & interior

Interior lamps – circuit diagram

Make
Land Rover
Model
Discovery Electrical Troubleshooting Manual
Year
1996
Section
Circuit diagram › Interior lamps – circuit diagram
Interior lampsInterior lamps – circuit diagram

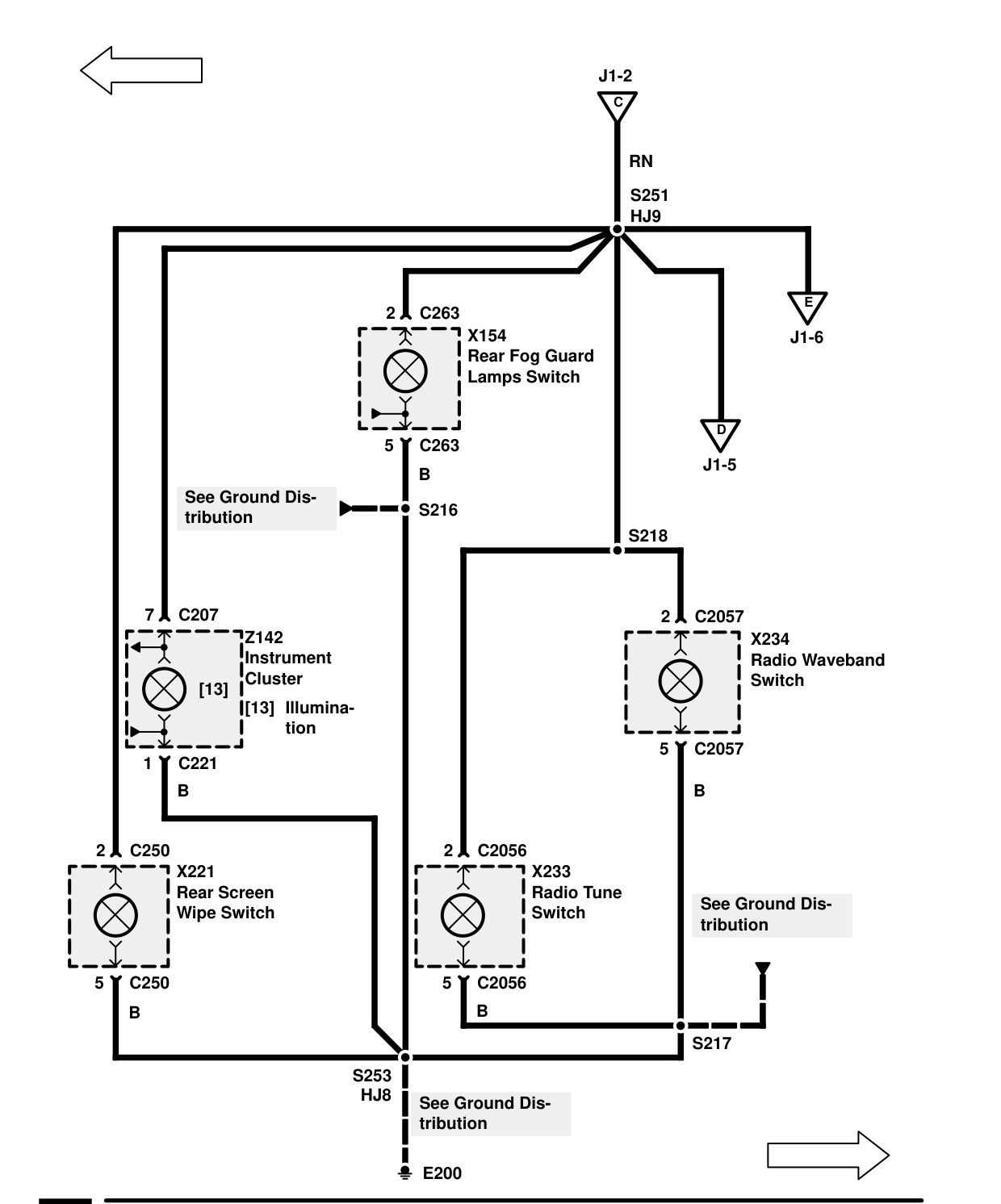

INTERIOR LAMPS – CIRCUIT DIAGRAM

Interior Lamps – Circuit Diagram

Components on this page

  • X154 Rear Fog Guard Lamps Switch
  • X221 Rear Screen Wipe Switch
  • X233 Radio Tune Switch
  • X234 Radio Waveband Switch
  • Z142 Instrument Cluster
