Land Rover Discovery Electrical Troubleshooting Manual (1996)30 · Interior lamps
30 · Body & interior

Interior lamps – circuit diagram

Make
Land Rover
Model
Discovery Electrical Troubleshooting Manual
Year
1996
Section
Circuit diagram › Interior lamps – circuit diagram
Interior lampsInterior lamps – circuit diagram

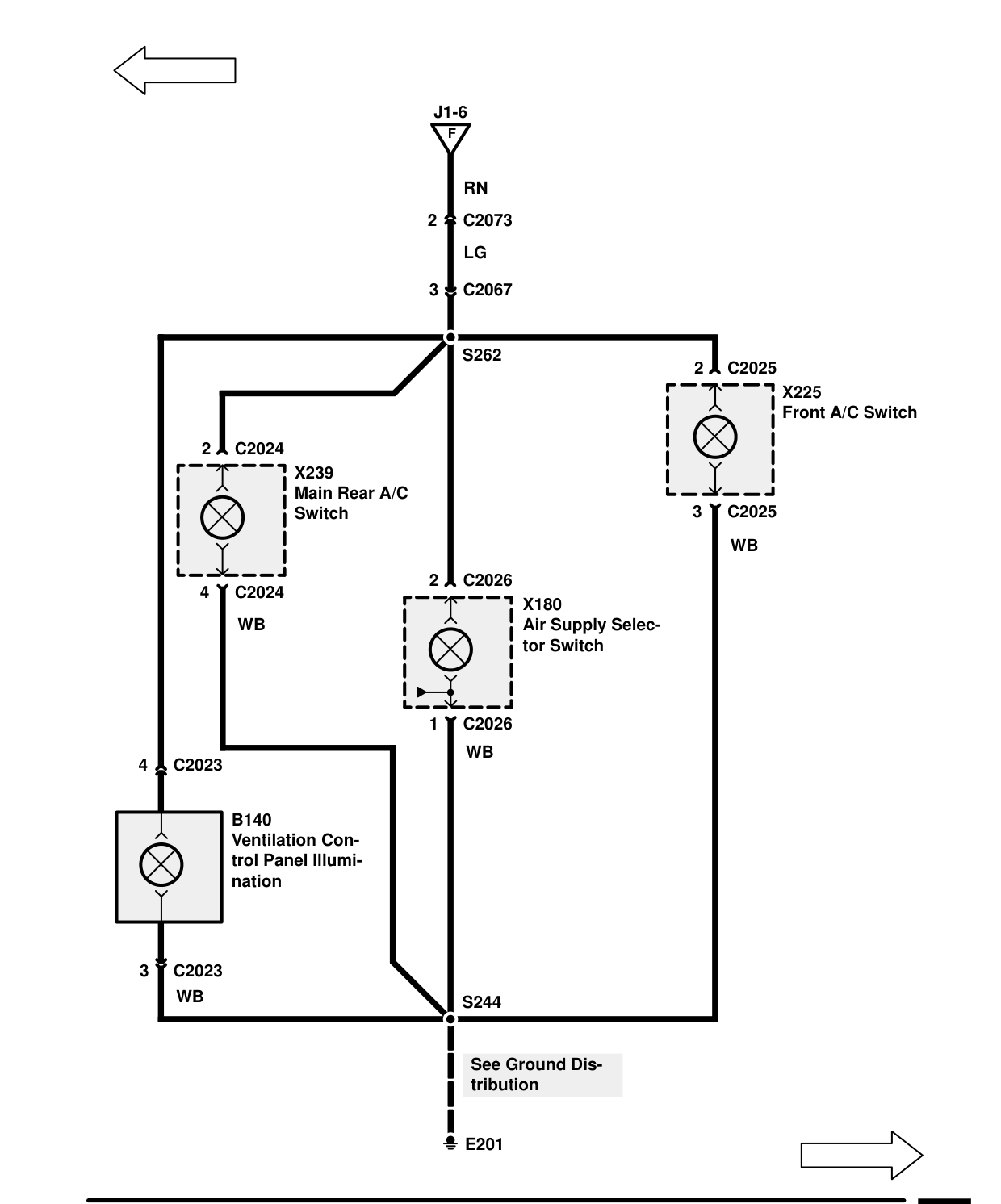

INTERIOR LAMPS – CIRCUIT DIAGRAM

Interior Lamps – Circuit Diagram

Components on this page

  • B140 Ventilation Control Panel Illumination
  • X180 Air Supply Selector Switch
  • X225 Front A/C Switch
  • X239 Main Rear A/C Switch
