Front wipe/wash – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram › Front wipe/wash – circuit diagram
Front wipe/washFront wipe/wash – circuit diagram

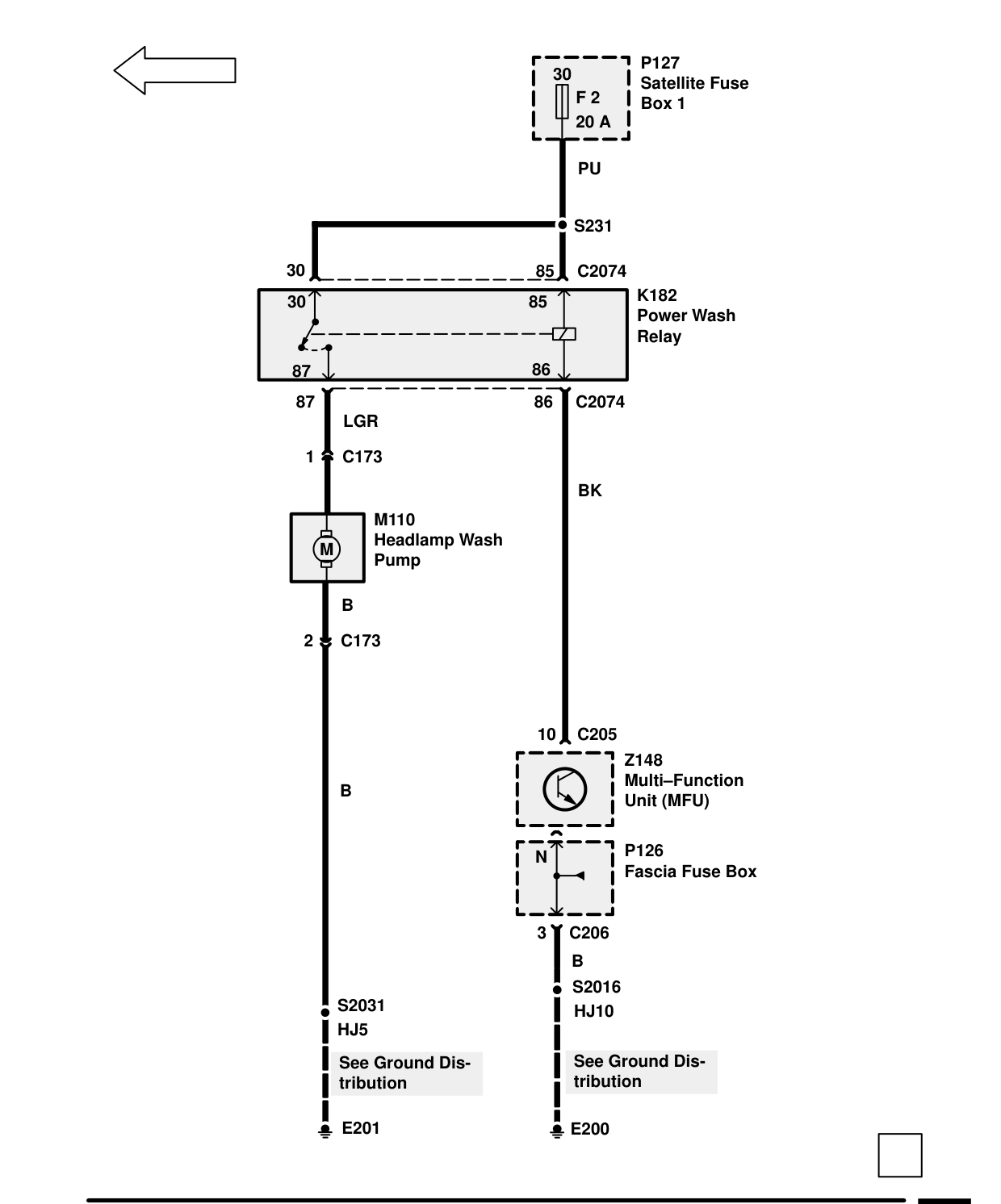

FRONT WIPE/WASH – CIRCUIT DIAGRAM
Components on this page
- K182 Power Wash Relay
- M110 Headlamp Wash Pump
- P126 Fascia Fuse Box
- P127 Satellite Fuse Box 1
- Z148 Multi-Function Unit (MFU)
