Fuse details – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram › Fuse details – circuit diagram
Fuse detailsFuse details – circuit diagram

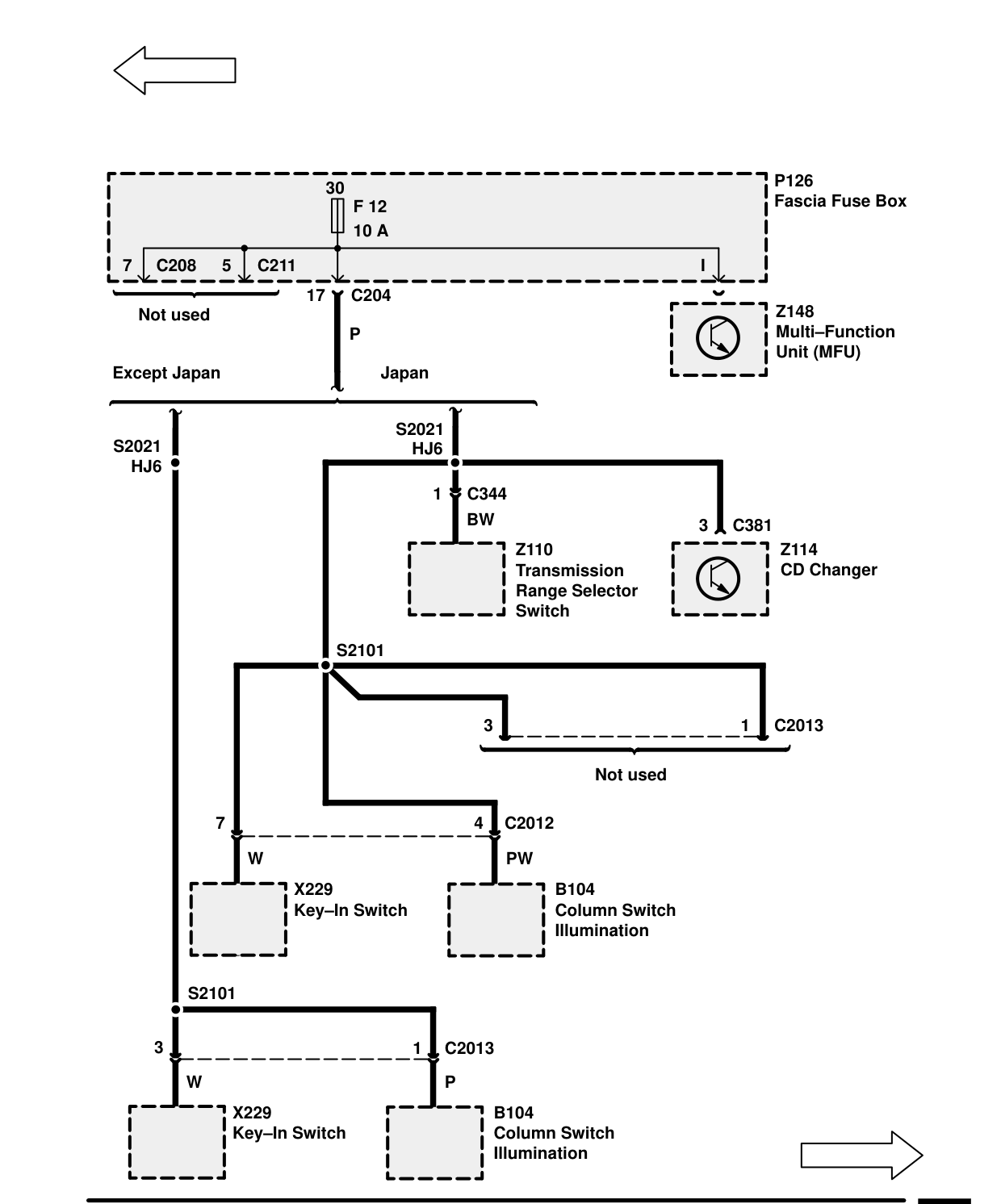

FUSE DETAILS – CIRCUIT DIAGRAM
Components on this page
- B104 Column Switch Illumination
- P126 Fascia Fuse Box
- X229 Key-In Switch
- Z110 Transmission Range Selector Switch
- Z114 CD Changer
- Z148 Multi-Function Unit (MFU)
