Fuse detailsFuse details – circuit diagram

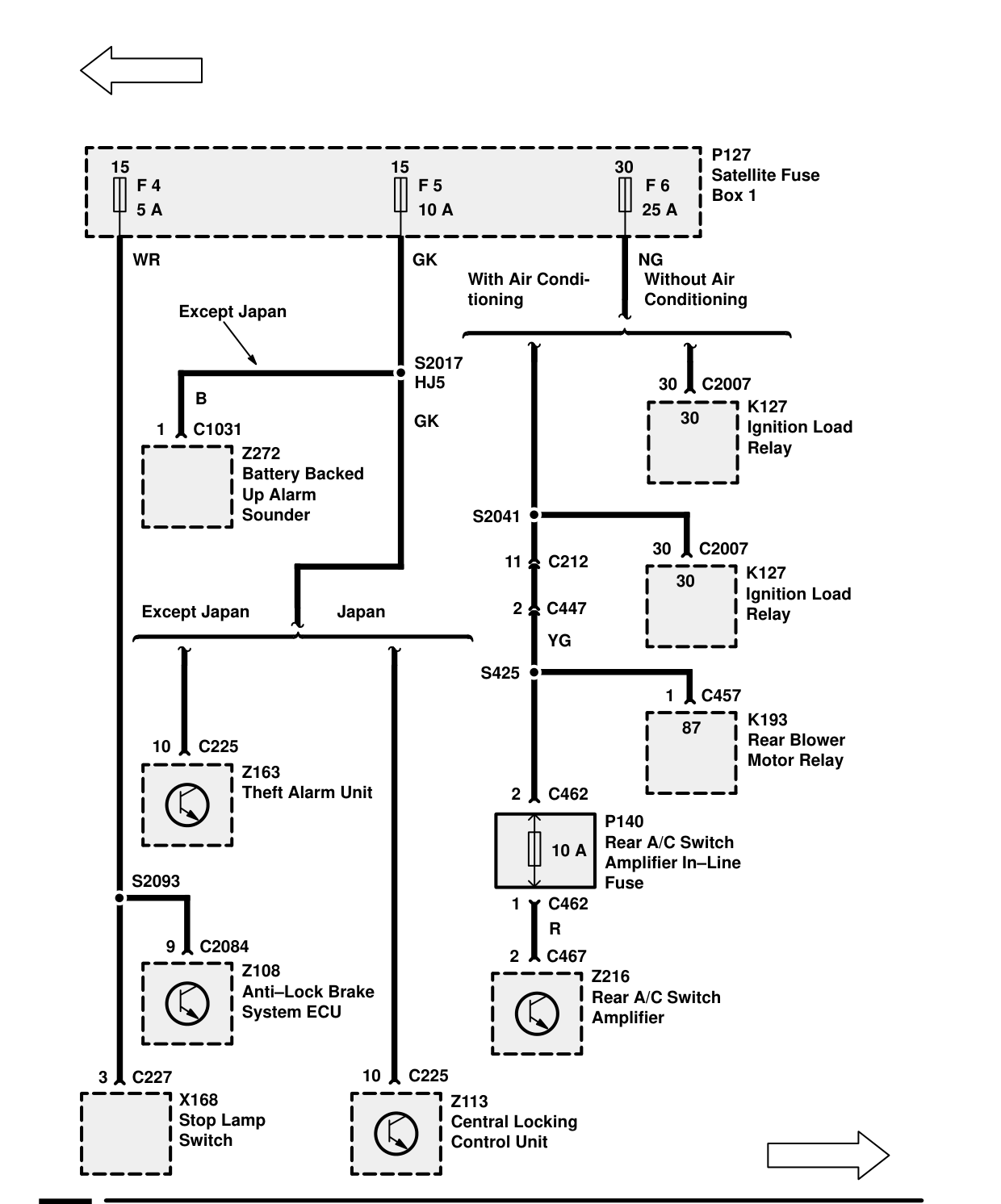

FUSE DETAILS – CIRCUIT DIAGRAM

Components on this page

• K127 Ignition Load Relay
• K193 Rear Blower Motor Relay
• P127 Satellite Fuse Box 1
• P140 Rear A/C Switch Amplifier In-Line Fuse
• X168 Stop Lamp Switch
• Z108 Anti-Lock Brake System ECU
• Z113 Central Locking Control Unit
• Z163 Theft Alarm Unit
• Z216 Rear A/C Switch Amplifier
• Z272 Battery Backed Up Alarm Sounder
