Fuse details – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram › Fuse details – circuit diagram
Fuse detailsFuse details – circuit diagram

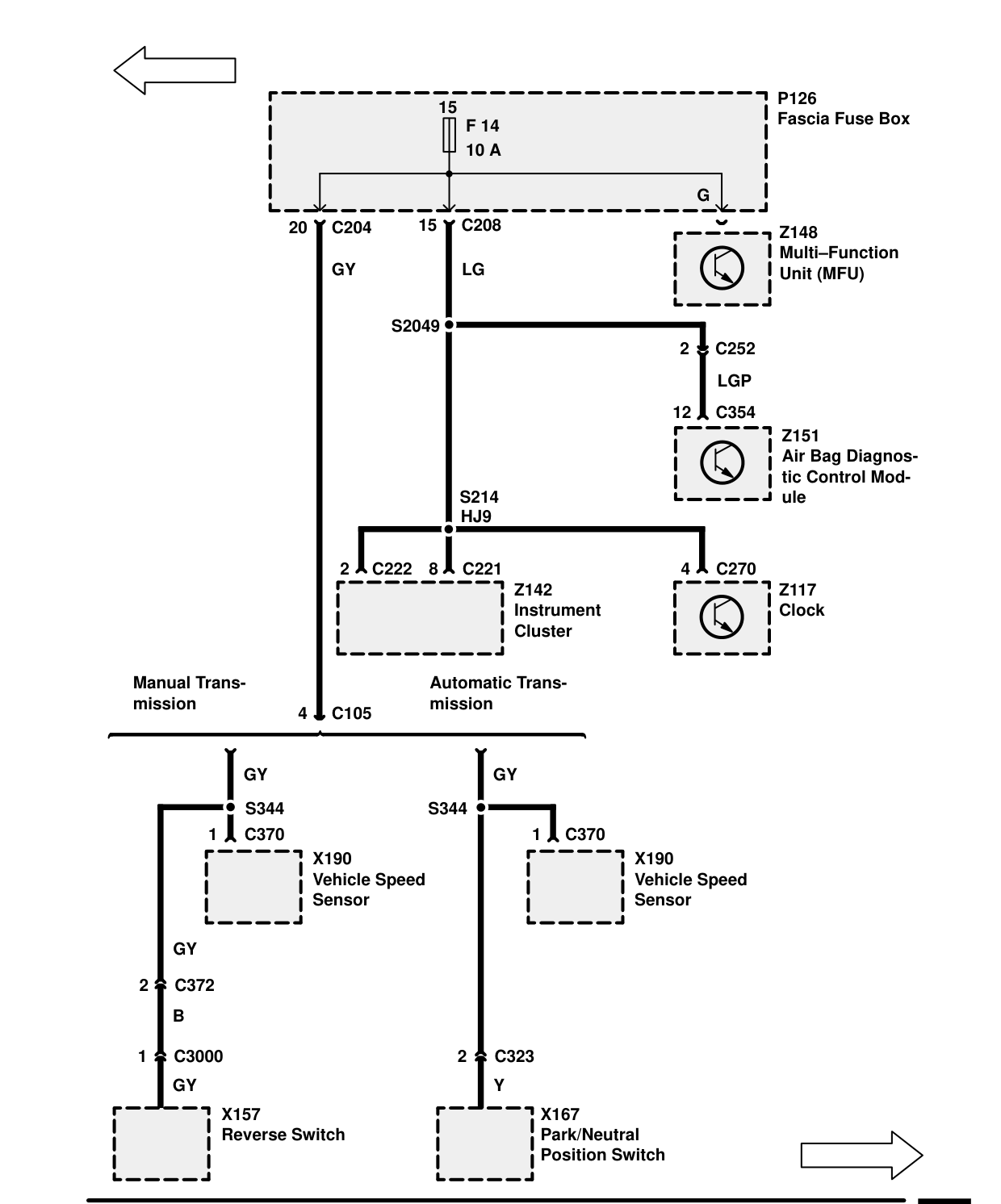

FUSE DETAILS – CIRCUIT DIAGRAM
Components on this page
- P126 Fascia Fuse Box
- X157 Reverse Switch
- X167 Park/Neutral Position Switch
- X190 Vehicle Speed Sensor
- Z117 Clock
- Z142 Instrument Cluster
- Z148 Multi-Function Unit (MFU)
- Z151 Air Bag Diagnostic Control Module
