Fuse details – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram › Fuse details – circuit diagram
Fuse detailsFuse details – circuit diagram

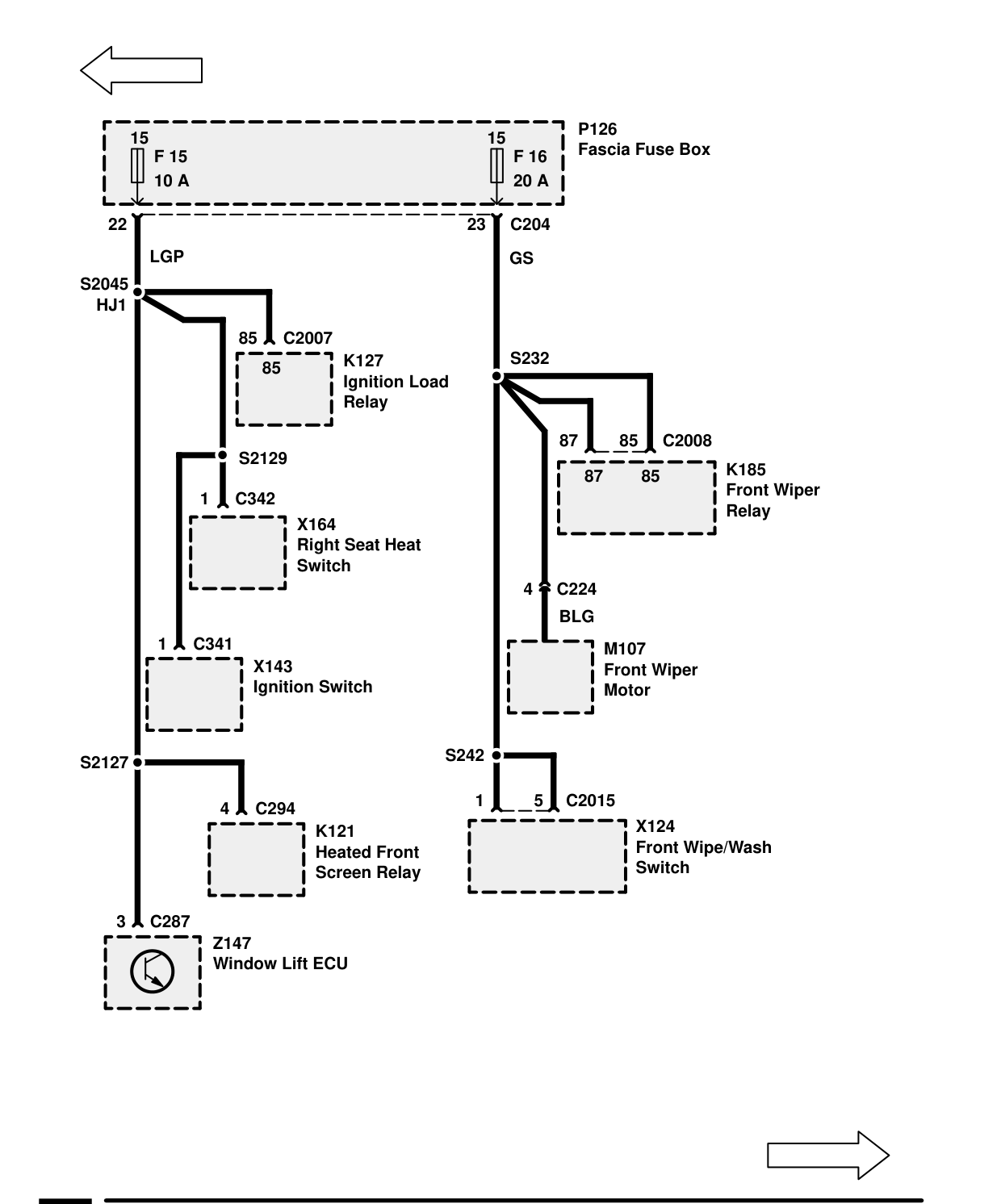

FUSE DETAILS – CIRCUIT DIAGRAM
Components on this page
- K121 Heated Front Screen Relay
- K127 Ignition Load Relay
- K185 Front Wiper Relay
- M107 Front Wiper Motor
- P126 Fascia Fuse Box
- X124 Front Wipe/Wash Switch
- X143 Ignition Switch
- X164 Right Seat Heat Switch
- Z147 Window Lift ECU
