Fuse details – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram › Fuse details – circuit diagram
Fuse detailsFuse details – circuit diagram

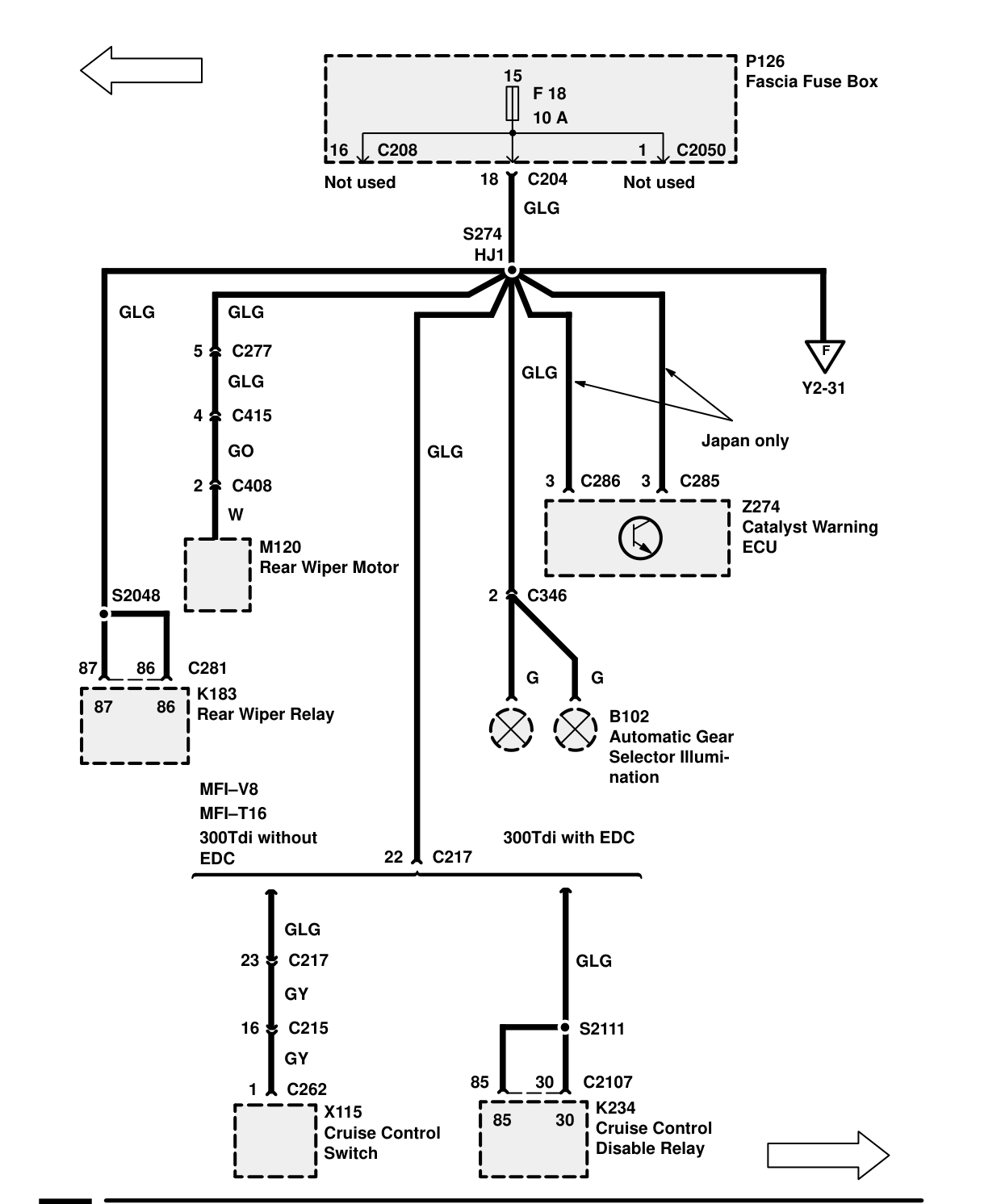

FUSE DETAILS – CIRCUIT DIAGRAM
Components on this page
- B102 Automatic Gear Selector Illumination
- K183 Rear Wiper Relay
- K234 Cruise Control Disable Relay
- M120 Rear Wiper Motor
- P126 Fascia Fuse Box
- X115 Cruise Control Switch
- Z274 Catalyst Warning ECU
