Fuse details – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram › Fuse details – circuit diagram

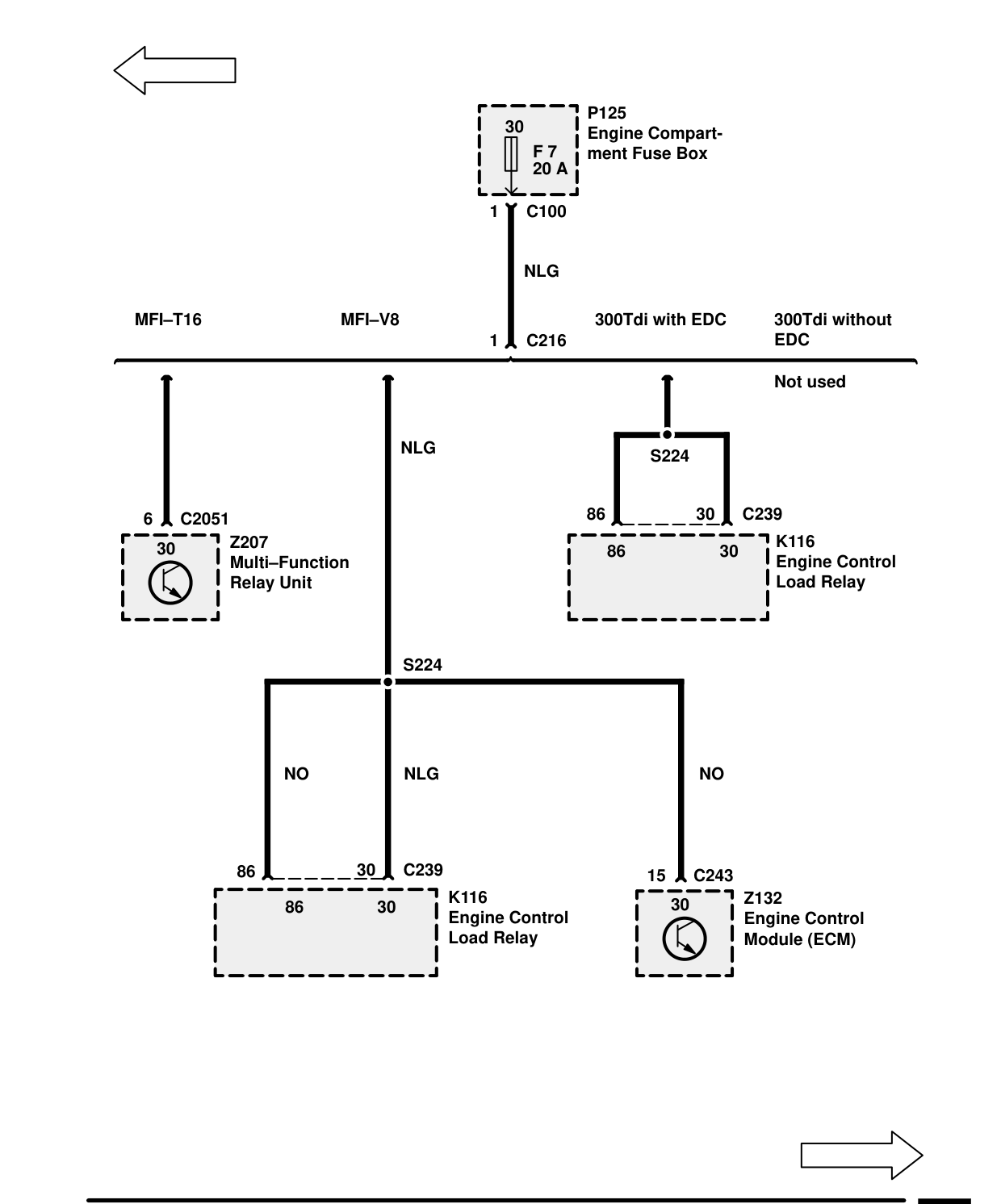

Fuse detailsFuse details – circuit diagram
FUSE DETAILS – CIRCUIT DIAGRAM
Components on this page
- K116 Engine Control Load Relay
- P125 Engine Compartment Fuse Box
- Z132 Engine Control Module (ECM)
- Z207 Multi-Function Relay Unit
