Fuse details – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram › Fuse details – circuit diagram
Fuse detailsFuse details – circuit diagram

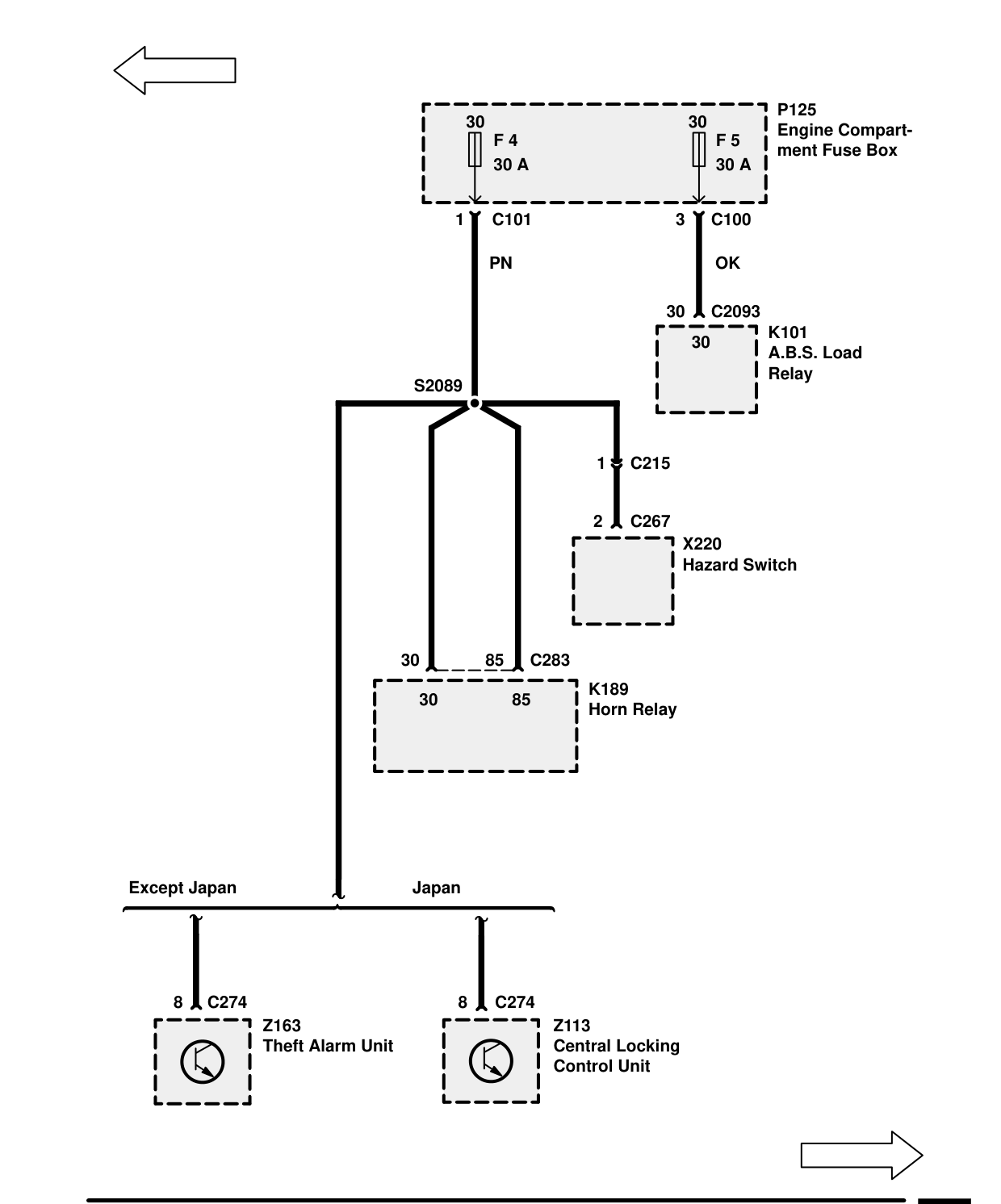

FUSE DETAILS – CIRCUIT DIAGRAM
Components on this page
- K101 A.B.S. Load Relay
- K189 Horn Relay
- P125 Engine Compartment Fuse Box
- X220 Hazard Switch
- Z113 Central Locking Control Unit
- Z163 Theft Alarm Unit
