Land Rover Discovery Electrical Troubleshooting Manual (1997 on)24 · Headlamps (Japan)
24 · General

Headlamps (Japan) – circuit diagram

Make
Land Rover
Model
Discovery Electrical Troubleshooting Manual
Year
1997 on
Section
Circuit diagram › Headlamps (Japan) – circuit diagram
Headlamps (Japan)Headlamps (Japan) – circuit diagram

HEADLAMPS (JAPAN) – CIRCUIT DIAGRAM

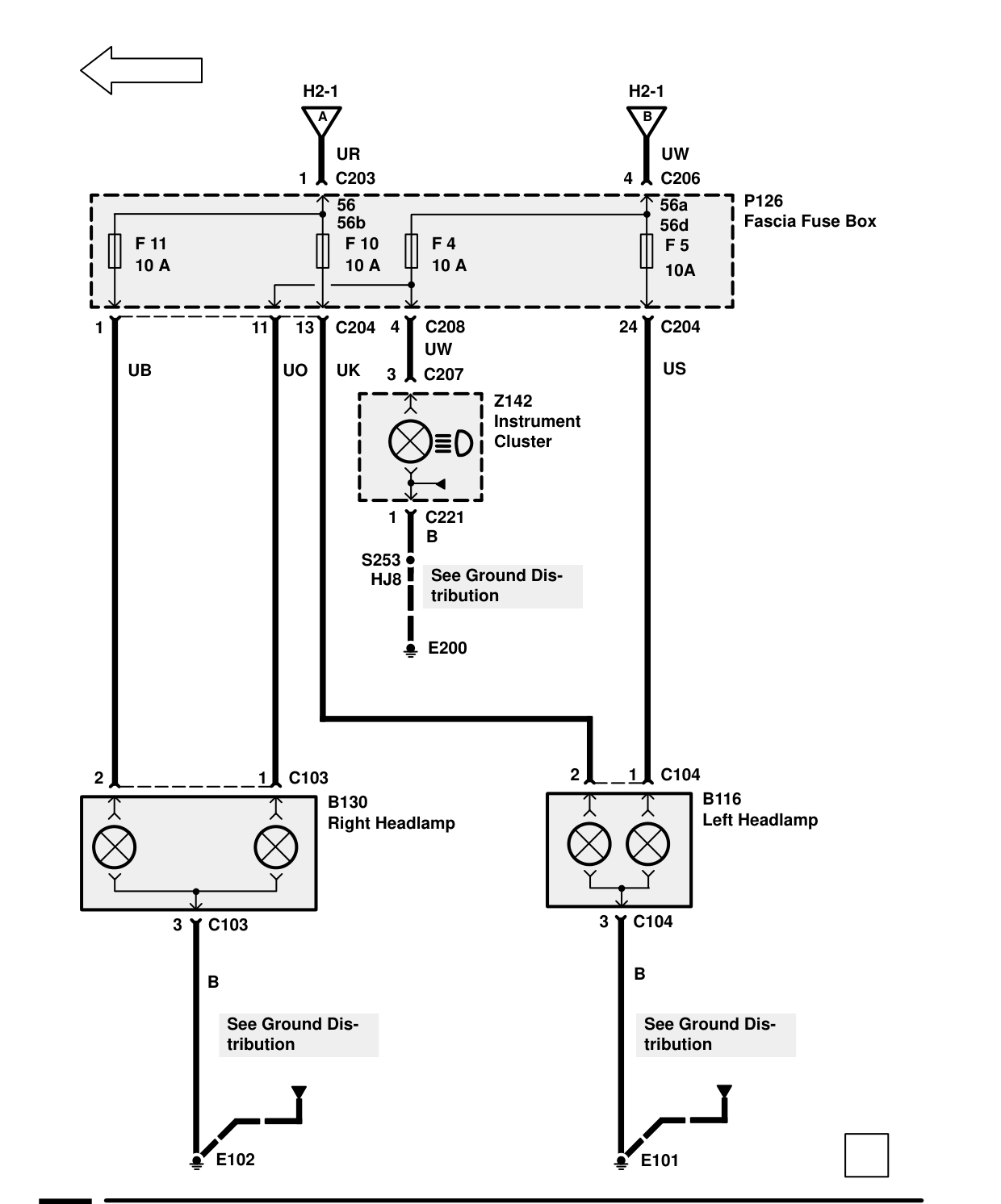

Headlamps (Japan) – Circuit Diagram

Components on this page

  • B130 Right Headlamp
  • P126 Fascia Fuse Box
  • Z142 Instrument Cluster
