Introduction

INTRODUCTION

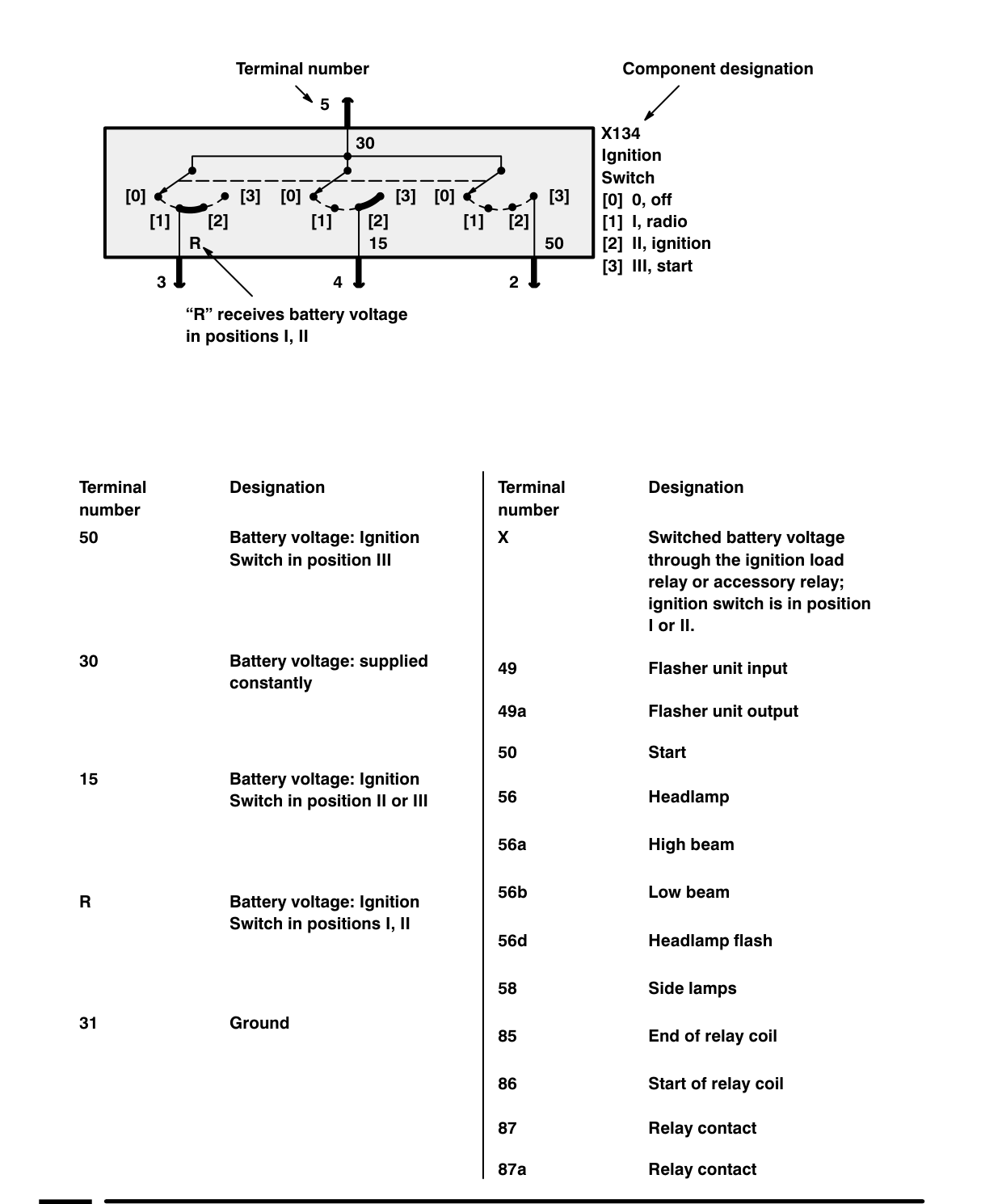

Terminal number Ns 30

28 01 Lp Bl OC , m1 nr | I2 15

“R” receives battery voltage in positions |, II

Terminal Designation number

50 Battery voltage: Ignition Switch in position Ill

30 Battery voltage: supplied constantly

15 Battery voltage: Ignition Switch in position Il or 11I

Battery voltage: Ignition Switch in positions I, II

31 Ground

Component designation pd x134 Ignition Switch 203 [oo of nl |, radio 50 II, ignition II, start

Terminal Designation number

Switched battery voltage through the ignition load relay or accessory relay; ignition switch is in position lorll

49 Flasher unit input

49a Flasher unit output

50 Start

56 Headlamp

56a High beam

56b Low beam

56d Headlamp flash

58 Side lamps

85 End of relay coil

86 Start of relay coil

87 Relay contact

87a Relay contact
