INTRODUCTION

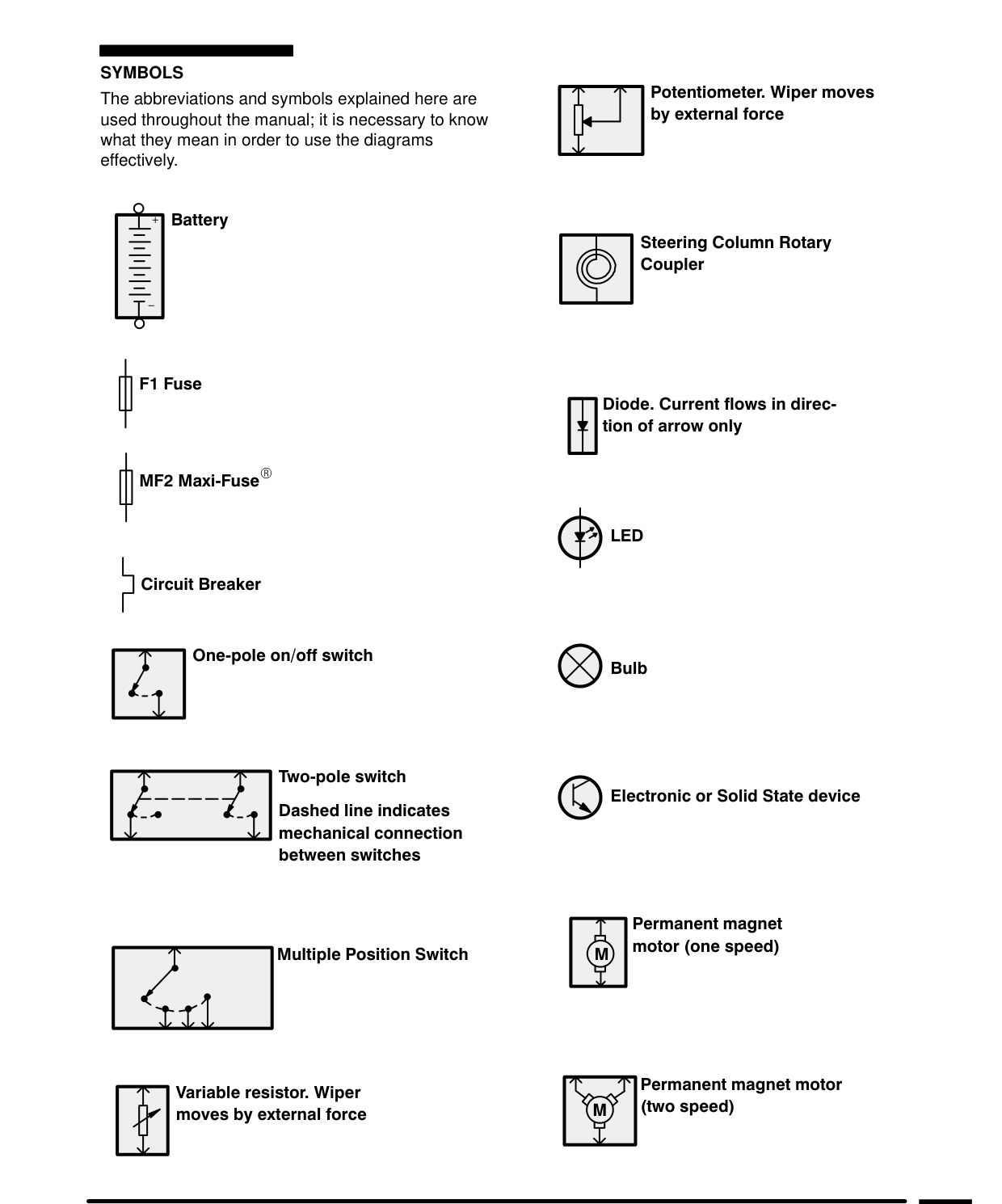

SYMBOLS The abbreviations and symbols explained here are used throughout the manual; it is necessary to know what they mean in order to use the diagrams effectively.
Battery
F1 Fuse
MF2 Maxi-Fuse
Circuit Breaker
4] or ne-pole on/off switch
Two-pole switch Dashed line indicates mechanical connection
between switches
[7] Multiple Position Switch Variable resistor. Wiper moves by external force
Potentiometer. Wiper moves by external force
Steering Column Rotary Coupler
Diode. Current flows in direc-
tion of arrow only
® LED
® Electronic or Solid State device
Permanent magnet motor (one speed)
Ny Permanent magnet motor (two speed)
