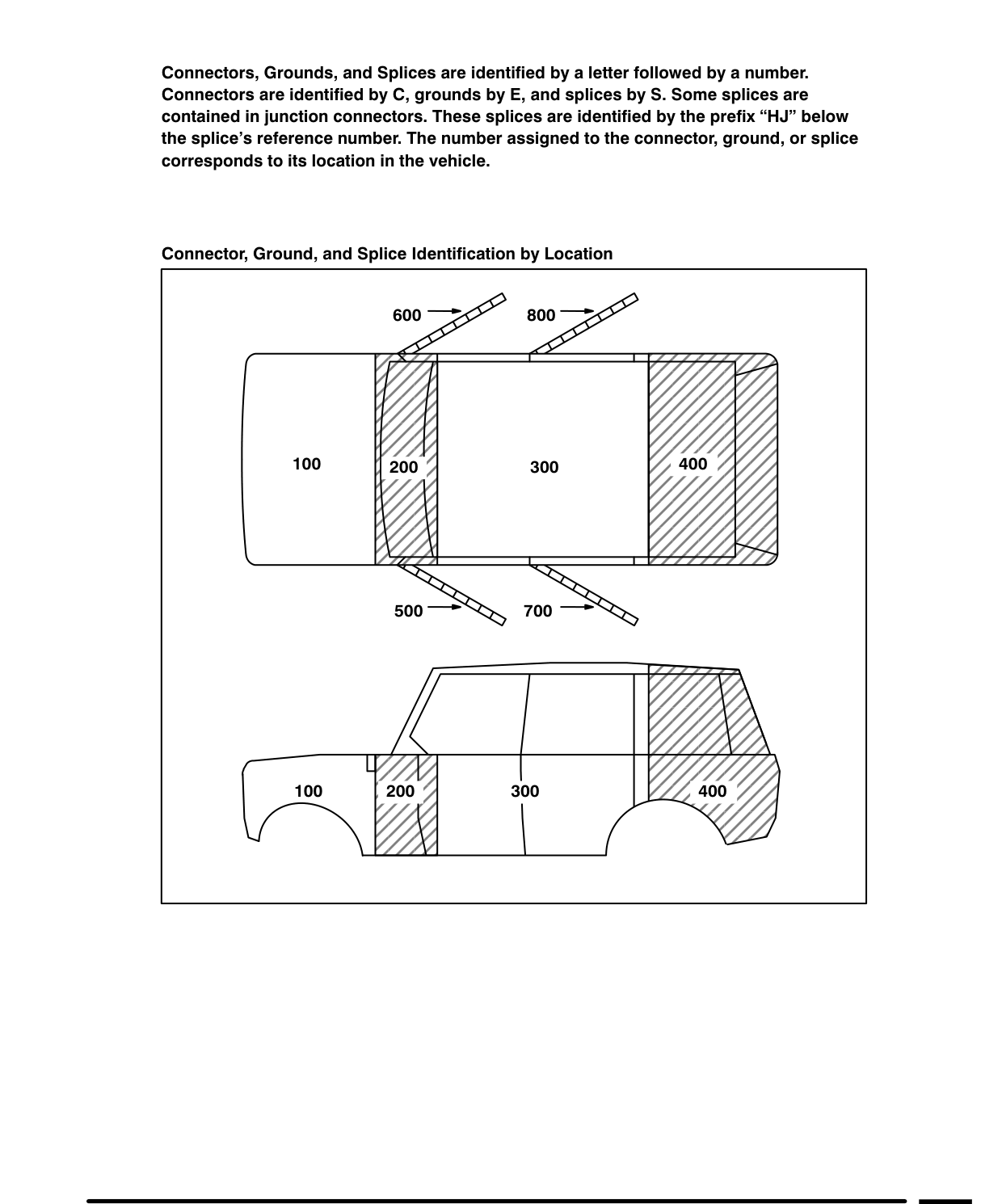

Connectors, Grounds, and Splices are identified by a letter followed by a number. Connectors are identified by C, grounds by E, and splices by S. Some splices are contained in junction connectors. These splices are identified by the prefix “HJ” below the splice’s reference number. The number assigned to the connector, ground, or splice corresponds to its location in the vehicle.

Connector, Ground, and Splice Identification by Location

600 —=<5

NN RS 500 TTR,

wh

800 25 pa

RS NN SN SN 700 TTR

| LZ 77 7 =n
