Power distribution – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram › Power distribution – circuit diagram
Power distributionPower distribution – circuit diagram

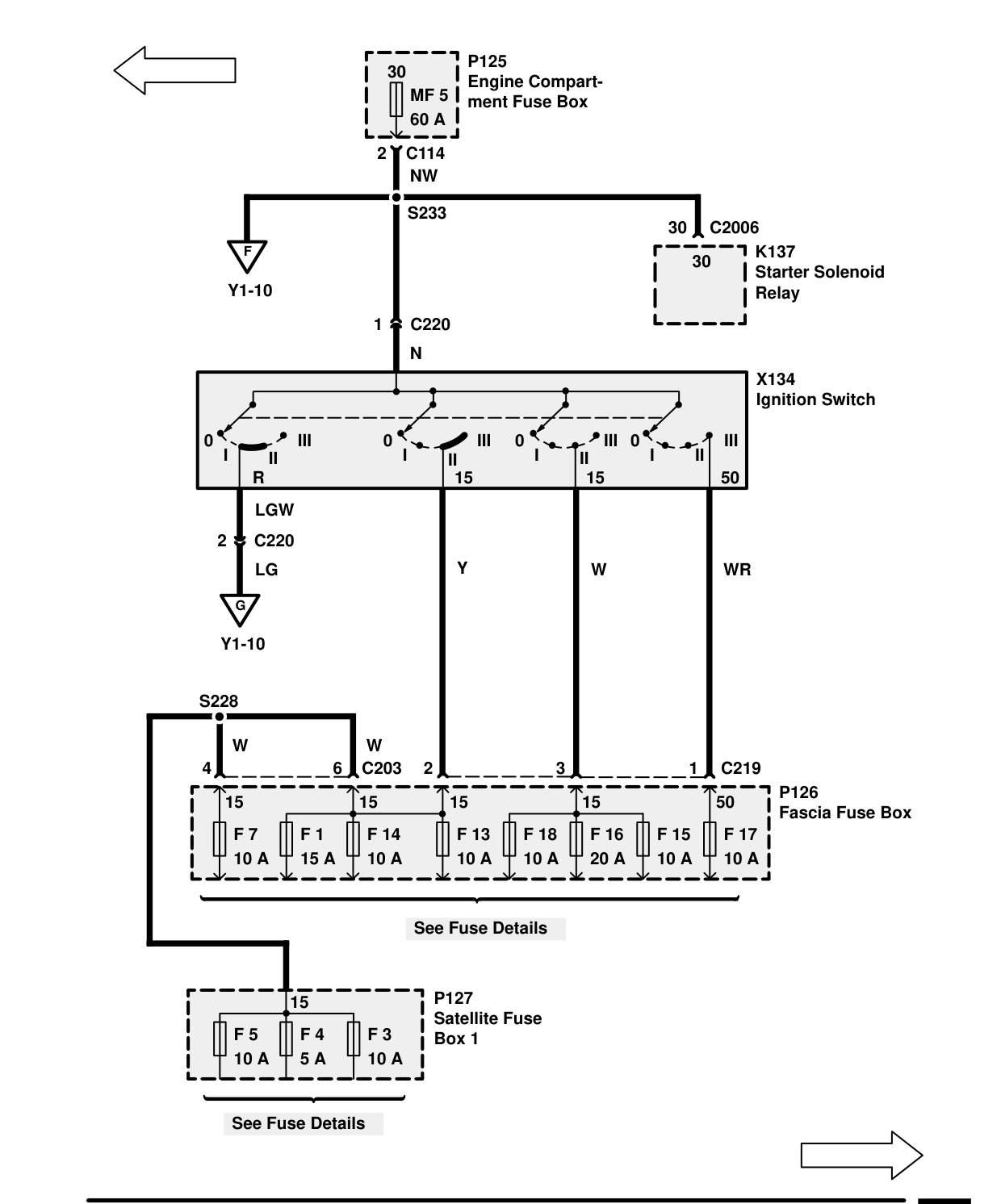

POWER DISTRIBUTION – CIRCUIT DIAGRAM
Components on this page
- K137 Starter Solenoid Relay
- P125 Engine Compartment Fuse Box
- P126 Fascia Fuse Box
- P127 Satellite Fuse Box 1
- X134 Ignition Switch
