Land Rover Discovery Electrical Troubleshooting Manual (1997 on)06 · Starting and charging
06 · Electrical

Starting and charging – circuit diagram

Make
Land Rover
Model
Discovery Electrical Troubleshooting Manual
Year
1997 on
Section
Circuit diagram › Starting and charging – circuit diagram
Starting and chargingStarting and charging – circuit diagram

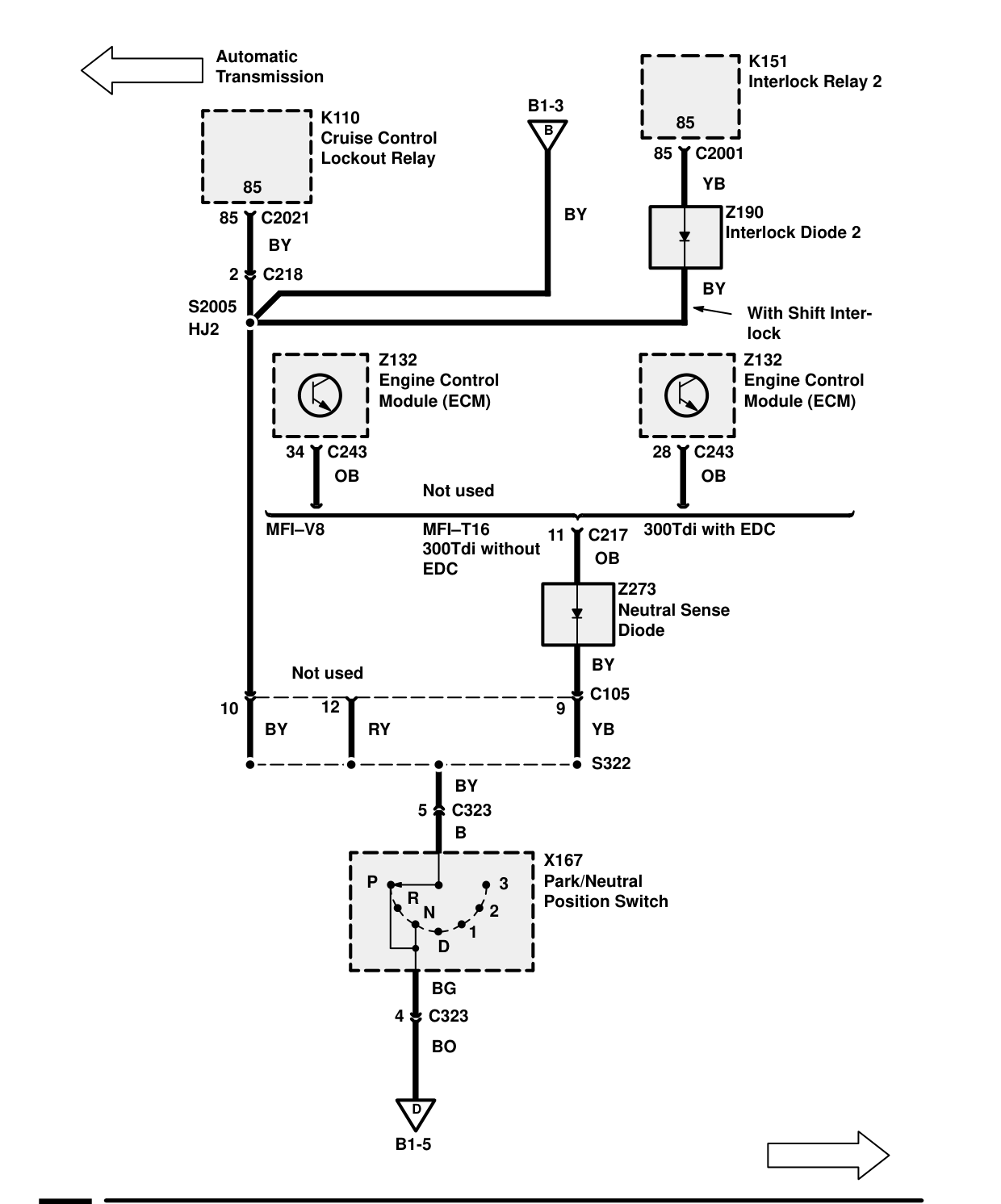

STARTING AND CHARGING – CIRCUIT DIAGRAM

Starting And Charging – Circuit Diagram

Components on this page

  • K110 Cruise Control Lockout Relay
  • K151 Interlock Relay 2
  • Z132 Engine Control Module (ECM)
  • Z190 Interlock Diode 2
  • Z273 Neutral Sense Diode
