Theft alarm system – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram › Theft alarm system – circuit diagram
‹ Prev Theft alarm system – theft alarm system (without bbus)Next › Theft alarm system – theft alarm system (MFI-V8)
Theft alarm systemTheft alarm system – circuit diagram

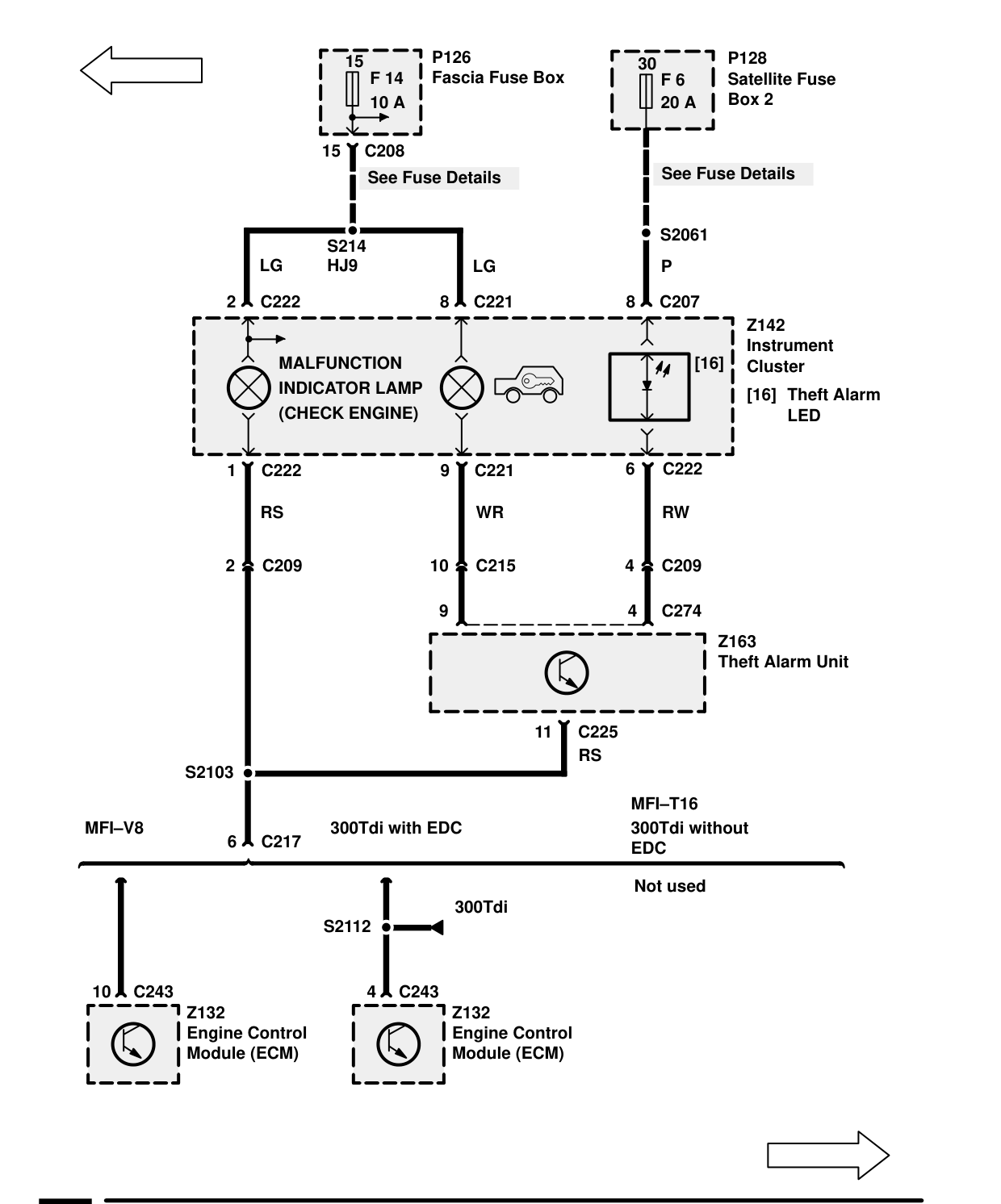

THEFT ALARM SYSTEM – CIRCUIT DIAGRAM
Components on this page
- P126 Fascia Fuse Box
- P128 Satellite Fuse Box 2
- Z132 Engine Control Module (ECM)
- Z142 Instrument Cluster
- Z163 Theft Alarm Unit
