BodyFront door central locking components

FRONT DOOR CENTRAL LOCKING COMPONENTS

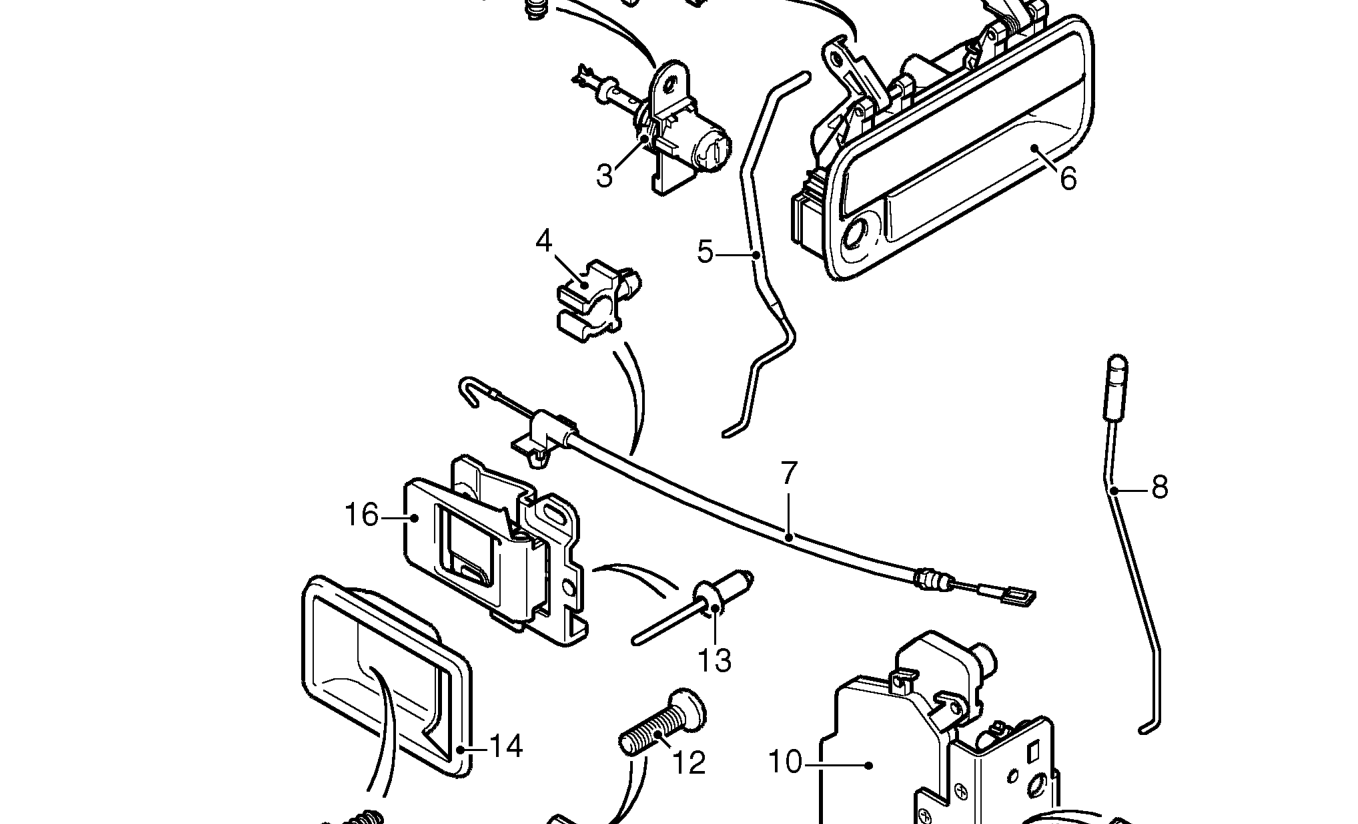

Front door central locking components

DRIVER’S DOOR MECHANISM SHOWN - PASSENGER DOOR MECHANISM SIMILAR

  1. Screw
  2. Linkage clip
  3. Lock assembly (driver’s door only)
  4. Release cable clip
  5. Link - Latch to outer door handle
  6. Outer door handle
  7. Release cable
  8. Link - Sill button
  9. Screw 3 off
  10. Latch assembly
  11. Striker
  12. Screw 2 off
  13. Rivet 2 off
  14. Screw
  15. Handle finisher
  16. Release handle
