Tail door window regulator (Body)

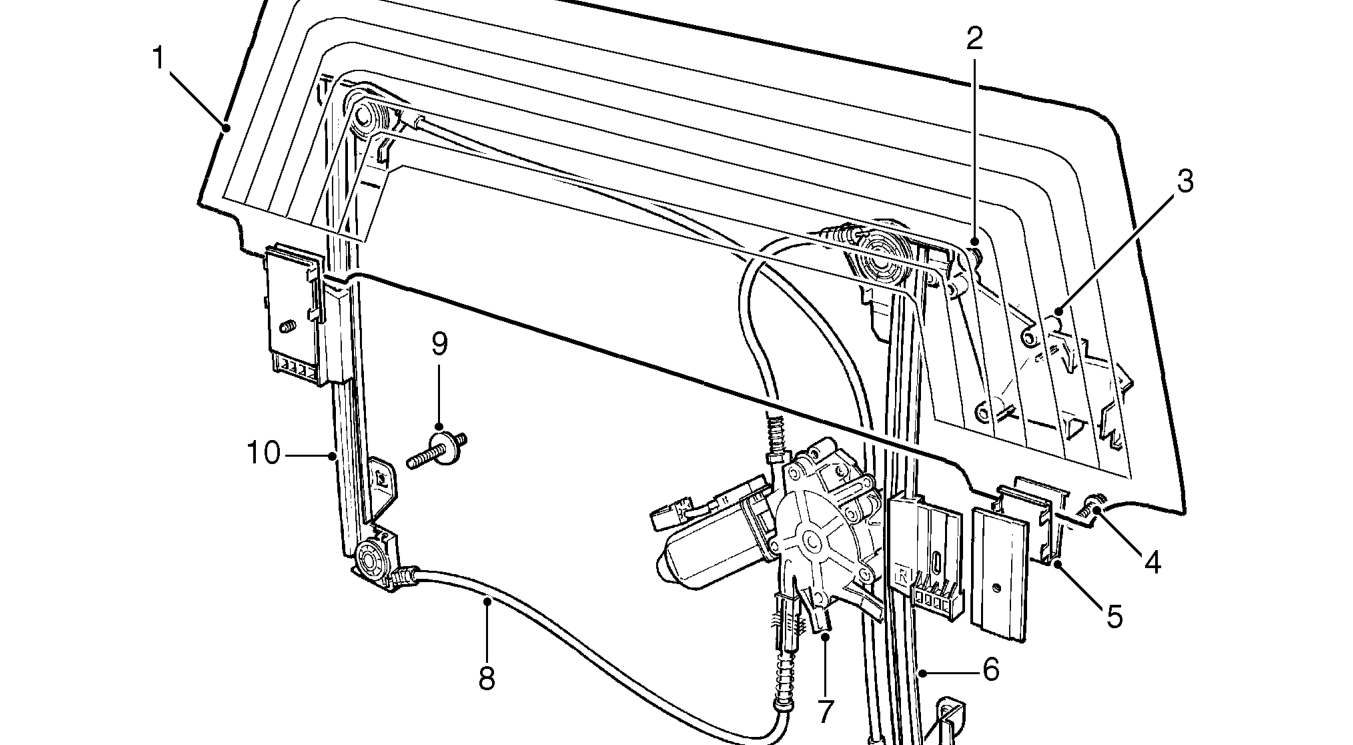

TAIL DOOR WINDOW REGULATOR

1. Tail door glass
2. Nut 3 off
3. Base plate
4. Clamp screw 2 off
5. Friction pad 2 off

The tail door window is electrically operated and is controlled principally by the central control unit. The window can be operated from a rocker switch on the fascia, reverse gear selected with front windscreen wipers operating, remote handset request, key operation in tail door key barrel and, on 3 door models, removal of the roof.

The tail door window regulator comprises left and right hand runners, a continuous cable and a motor. The runners are secured in the tail door frame with four screws. The glass is located in two carriers which are located in tracks in the runners. The glass is retained in friction pads in each carrier and secured with clamp screws.

6. Runner RH
7. Motor
8. Cable
9. Mounting screw 4 off
10. Runner LH

Each carrier is attached to the cable which, in turn, is attached to a drum driven by a motor. When the motor is operated, the drum pulls the cable in the required direction to raise or lower the glass.
