Front window regulator (Body)

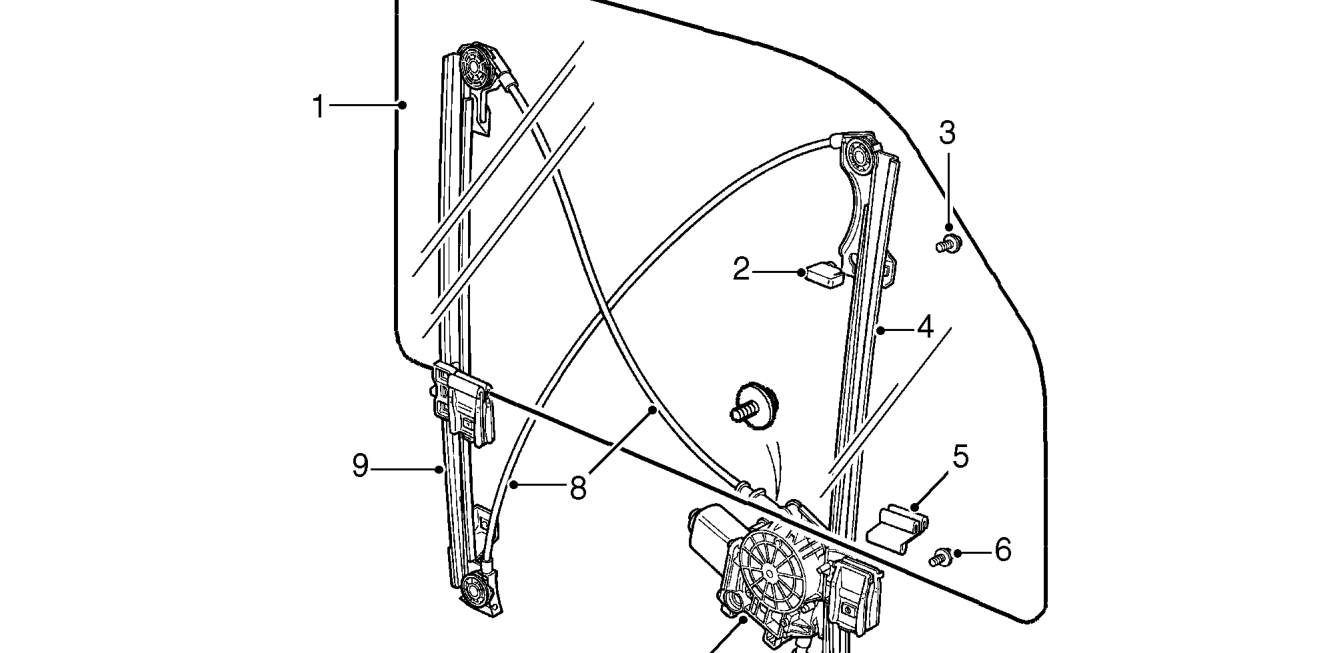

FRONT WINDOW REGULATOR

LH REGULATOR SHOWN - RH SIMILAR

1. Front window glass
2. Glass stop damper
3. Mounting screw 4 off
4. Forward runner
5. Friction pad

The front windows are electrically operated and are controlled from two rocker type switches located in the centre of the fascia. The windows can only be operated with the ignition in position II.

The front window regulator and motor are supplied as an assembly and are handed. The assembly comprises a front and rear runner, a continuous cable and a motor.

6. Glass clamp screw
7. Motor assembly
8. Cables
9. Rear runner

The runners are secured in the door frame with four screws. The door glass is located in two carriers which are located in tracks in the runners. The glass is retained in friction pads in each carrier and secured with clamp screws.

Each carrier is attached to the cable which in turn is attached to a drum which is driven by the motor. When the motor is operated the drum pulls the cable in the required direction to raise or lower the glass.
