Rear window regulator (Body)

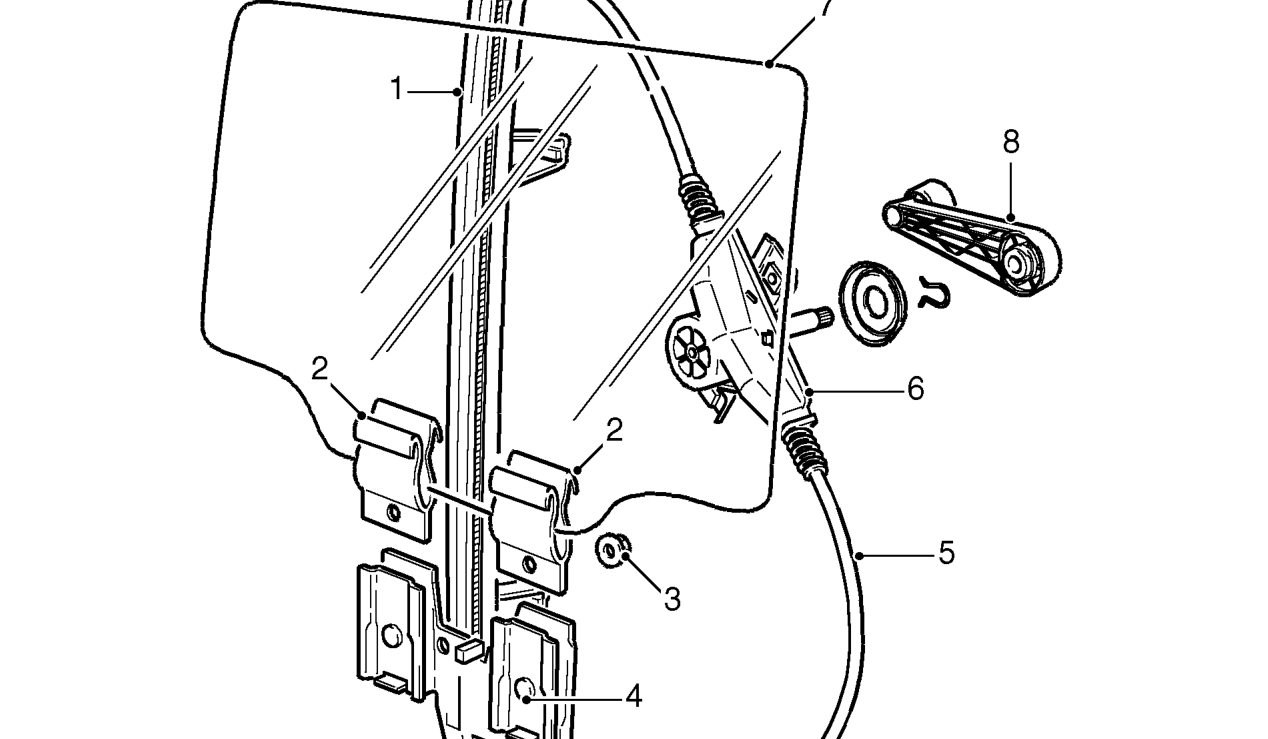

REAR WINDOW REGULATOR

RH REGULATOR SHOWN - LH SIMILAR

1. Runner
2. Friction pad
3. Mounting nut 2 off
4. Mounting screw 2 off

Each rear window is manually operated using the regulator handle located on rear door.

The rear window regulators are supplied as an assembly and are handed. The assembly comprises a runner, regulator mechanism, cable and regulator handle.

The runner is secured in the door frame with four bolts, two bolts securing the runner and two bolts securing the regulator. The door glass is located in two carriers which are connected to a track in the runner. The glass is retained in friction pads in each carrier and secured with clamp screws and nuts.

5. Cable
6. Regulator
7. Rear window glass
8. Regulator handle

The carrier is attached to the cable which, in turn, is attached to a drum driven by the manual regulator. When the regulator handle is rotated in the required direction, the drum pulls the cable to raise or lower the glass.
