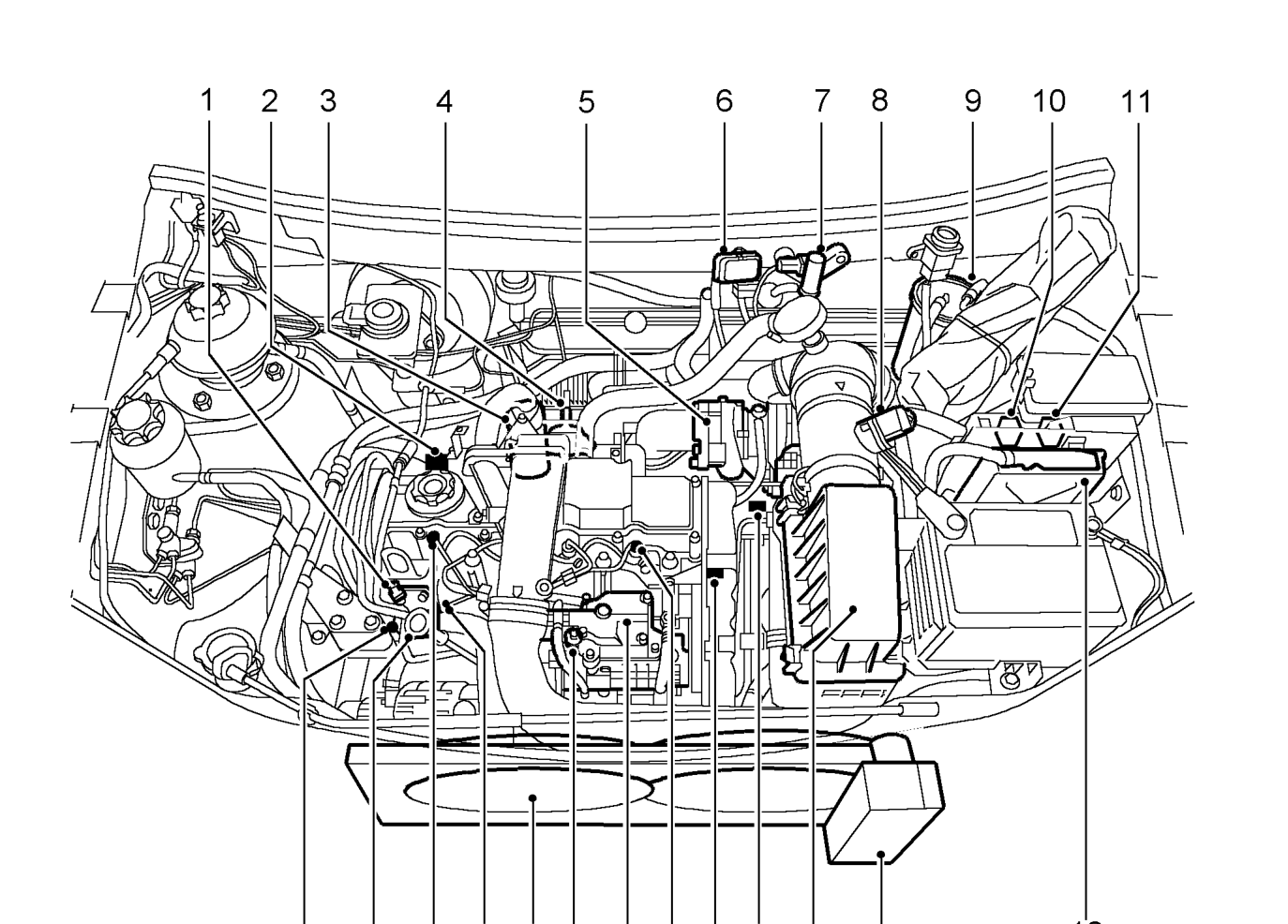

Engine compartment component locations (Engine management system - EDC)

ENGINE COMPARTMENT COMPONENT LOCATIONS

1. Engine Coolant Temperature (ECT) sensor
2. Intake Air Temperature (IAT) sensor
3. EGR cooler
4. EGR valve
5. Turbocharger
6. Manifold Absolute Pressure (MAP) sensor
7. EGR modulator valve
8. Mass Air Flow (MAF) sensor
9. Fuel filter
10. Main relay - fuel injection pump
11. Glow plug relay
12. Engine Control Module (ECM)
13. Intercooler
14. Air cleaner
15. Vehicle Speed Sensor (VSS)
16. Crankshaft Position (CKP) sensor
17. Injectors
18. Fuel injection pump
19. Fuel shut off solenoid
20. Cooling fans
21. Glow plugs
22. Needle lift sensor (No. 1 injector)
23. Coolant outlet elbow
24. Coolant temperature gauge sender
