Land Rover Freelander Workshop Manual (1998-2000)15 · Manual gearbox - PG1
15 · Transmission

Gearbox - ’k’ series (page 2 of 4)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Manual gearbox - PG1Gearbox - ’k’ series · page 2 of 4
Diagram
  1. Disconnect multiplug from VSS.

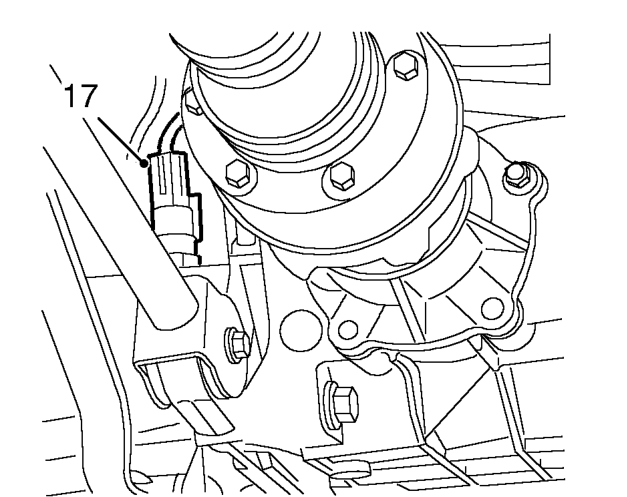

Disconnect multiplug from VSS.

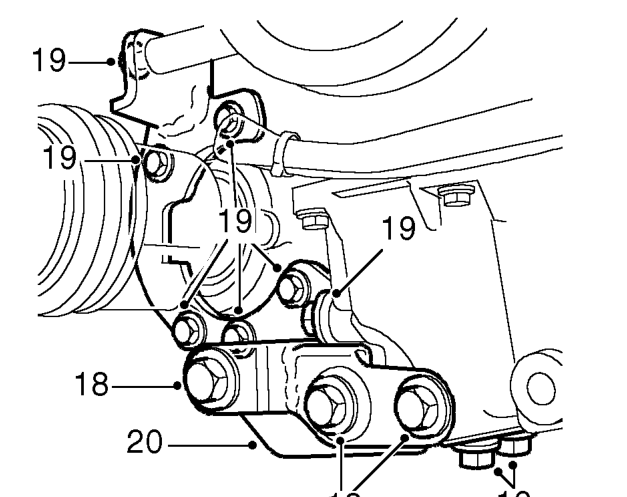

  1. Remove 3 bolts securing lower tie rod and remove tie rod bracket.
  2. Remove 9 bolts securing IRD support bracket.
  3. Remove IRD support bracket.

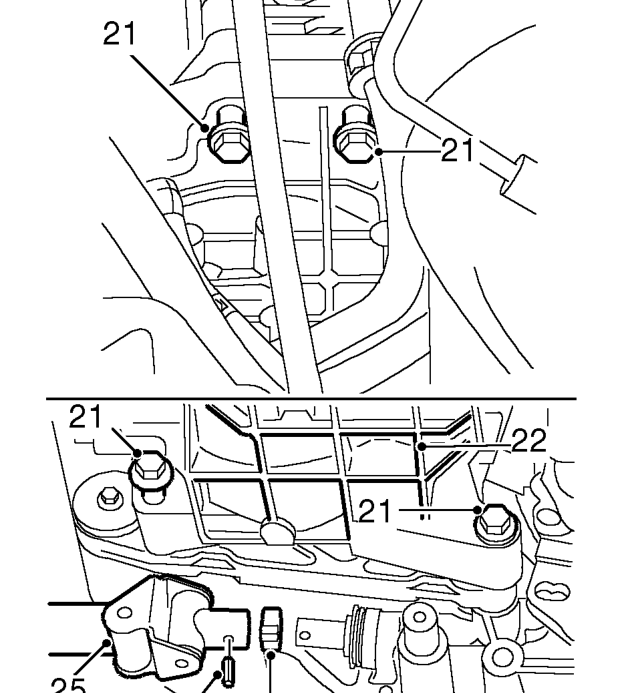

Remove IRD support bracket.
  1. Remove 4 bolts securing IRD to gearbox.
  2. Carefully release IRD unit from gearbox.

CAUTION: Support the IRD unit using a suitable block of wood on top of the sub frame.

  1. Remove gear change roll pin retaining clip.
  2. Remove and discard roll pin.
  3. Release gear change rod from gearbox.
