Land Rover Freelander Workshop Manual (1998-2000)15 · Manual gearbox - PG1
15 · Transmission

Gearbox - ’k’ series (page 3 of 4)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Manual gearbox - PG1Gearbox - ’k’ series · page 3 of 4
Diagram
  1. Remove 3 bolts securing IRD adaptor plate to gearbox.
  2. Remove flywheel cover plate.
  3. Remove dowel bolt from rear of gearbox.

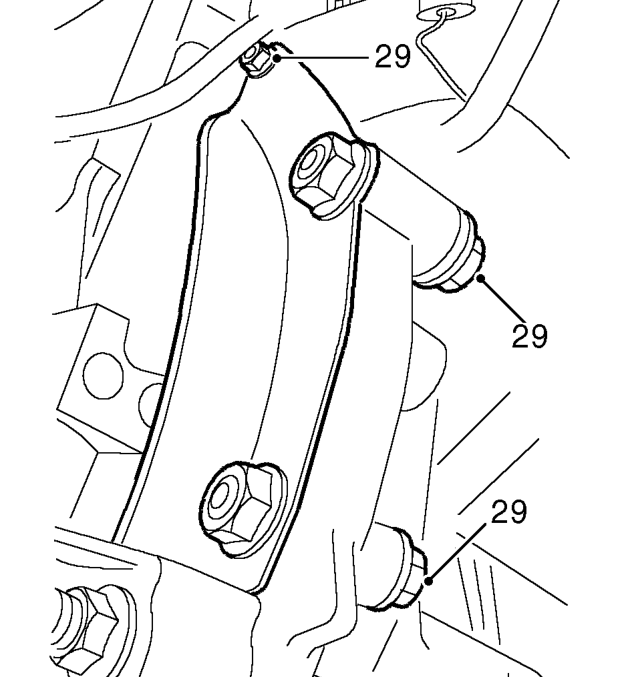

Remove dowel bolt from rear of gearbox.
  1. Remove 3 bolts securing flywheel cover plate and remove cover plate.
Remove 3 bolts securing flywheel cover plate and remove cover plate.
  1. Fit suitable lifting bracket to gearbox and attach lifting equipment.
  2. Remove bolt from gearbox mounting.
  3. Lower gearbox.
  4. Position jack to support engine.

CAUTION: Use a block of wood between jack and sump.

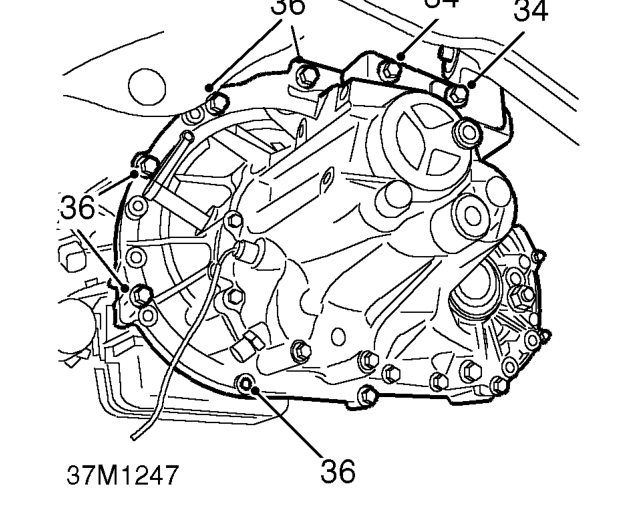

Position jack to support engine.
  1. Remove 2 bolts securing gearbox mounting bracket.
  2. Remove gearbox mounting bracket.
  3. Remove 5 bolts securing gearbox to engine.
