Land Rover Freelander Workshop Manual (1998-2000)15 · Manual gearbox - PG1
15 · Transmission

Gearbox - ’l’ series

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Gearbox - ’l’ series
Manual gearbox - PG1Gearbox - ’l’ series · page 1 of 6
  1. Connect multiplugs to VSS and 1st gear sensor.
  2. Fit starter motor. See ELECTRICAL, Repairs.
  3. Fit battery carrier. See ELECTRICAL, Repairs.
  4. Align hub to damper, fit and tighten both bolts to 205 Nm.
  5. Position brake hose in bracket and secure with ’C’ clip.
  6. Fit exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  7. Position LH splash panel, fit and tighten bolts.
  8. Fit LH drive shaft. See DRIVE SHAFTS, Repairs.
  9. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
  10. Remove stand(s) and lower vehicle.
  11. Refill IRD unit with lubricating fluid. See MAINTENANCE.
  12. Refill gearbox with lubricating fluid. See MAINTENANCE.

GEARBOX - ’L’ SERIES

Service repair no - 37.20.02/99

Remove

  1. Remove starter motor. See ELECTRICAL, Repairs.
  2. Remove battery carrier. See ELECTRICAL, Repairs.
  3. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS - ’L’ SERIES, Repairs.
Gearbox - ’l’ series – Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS - ’L’ SERIES, Repairs.

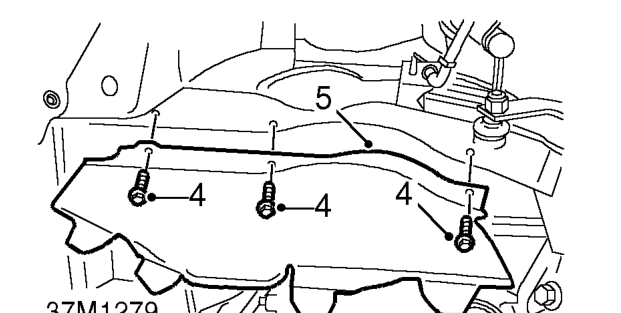

  1. Remove 3 bolts securing LH splash shield.
  2. Remove splash shield.
Gearbox - ’l’ series – Remove splash shield.

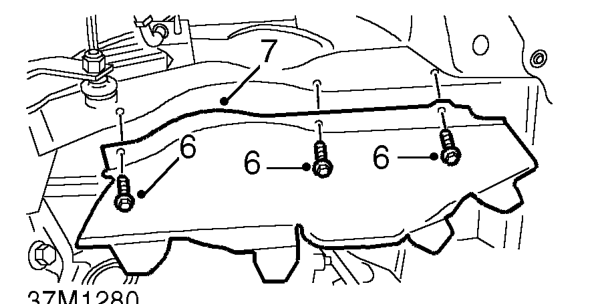

  1. Remove 3 bolts securing RH splash shield.
