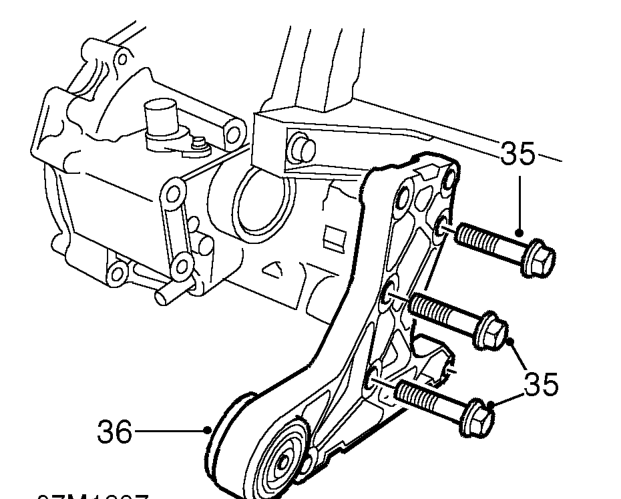

35. Remove 3 bolts securing IRD adaptor plate to gearbox.
36. Remove IRD adaptor plate.

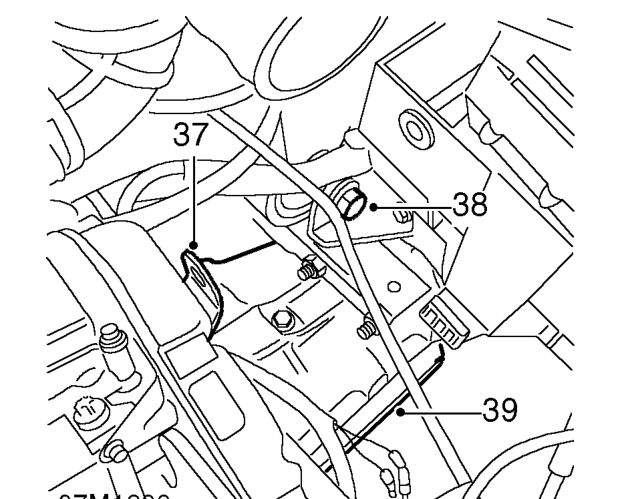

37. Fit suitable lifting bracket to gearbox and attach lifting equipment.
38. Remove bolt securing LH mounting to bracket on body.
39. Lower gearbox.
40. Position jack to support engine.

CAUTION: Use a block of wood between jack and sump.

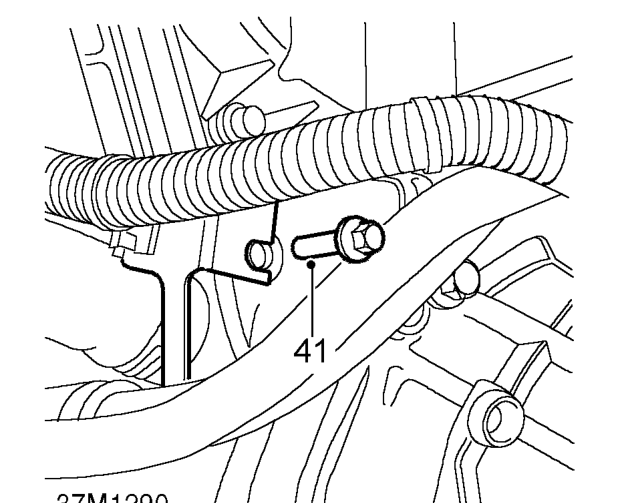

41. Remove bolt securing coolant and fuel rails to adaptor plate.
