Land Rover Freelander Workshop Manual (1998-2000)15 · Manual gearbox - PG1
15 · Transmission

Gearbox - ’l’ series (page 3 of 6)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Manual gearbox - PG1Gearbox - ’l’ series · page 3 of 6
Diagram

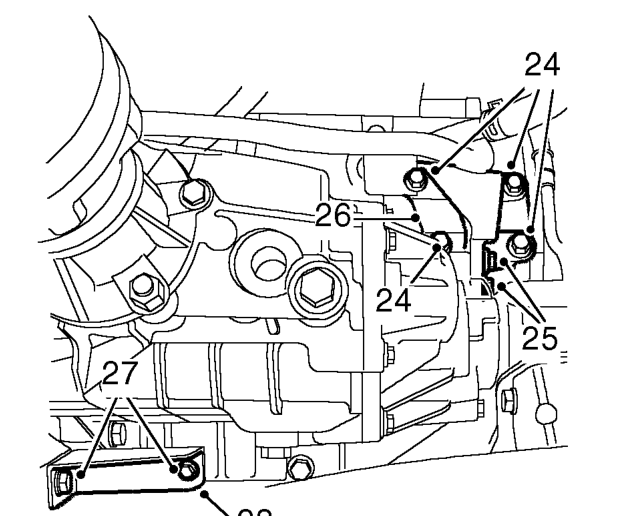

  1. Remove 4 bolts securing IRD support bracket to cylinder block.
  2. Remove 2 bolts securing support bracket to IRD.
  3. Remove IRD support bracket.
  4. Remove 2 bolts securing bracket to gearbox and sump.
  5. Remove support bracket.
Remove support bracket.

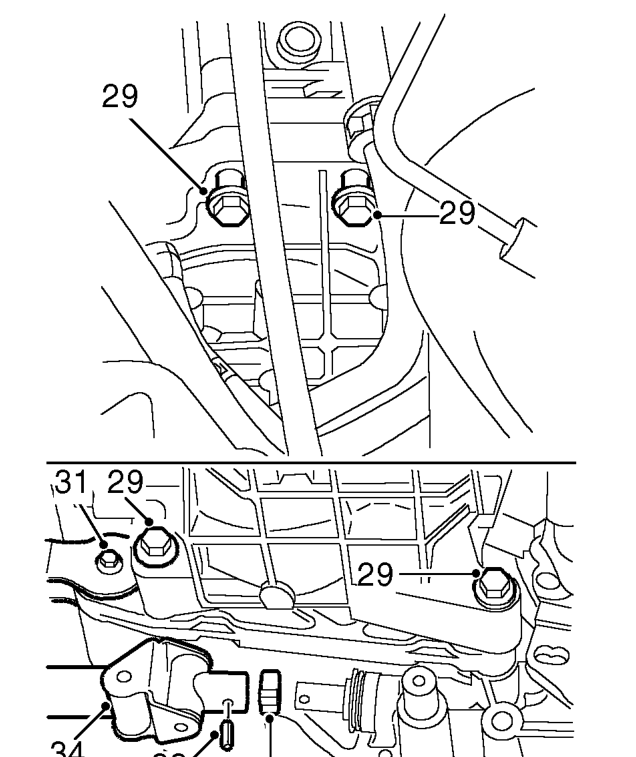

  1. Remove 4 bolts securing IRD to gearbox.
  2. Carefully release IRD unit from gearbox.

CAUTION: Support the IRD unit on a suitable block of wood on top of the sub frame and tie IRD in this position.

  1. Remove bolt securing gear change steady rod to IRD adaptor plate.
  2. Remove retaining clip from gear selector rod roll pin.
  3. Remove and discard roll pin.
  4. Release gear selector and steady rods.
